The proposed methodology is capable of classifying the
failures with a high success rate, to the point that only one
sample avoided obtaining 100% accuracy. The effectiveness
of the methodology can be seen with also achieved a mean
accuracy of 99.55% for the classification of 10 different
bearing system failures.
V. CONCLUSIONS

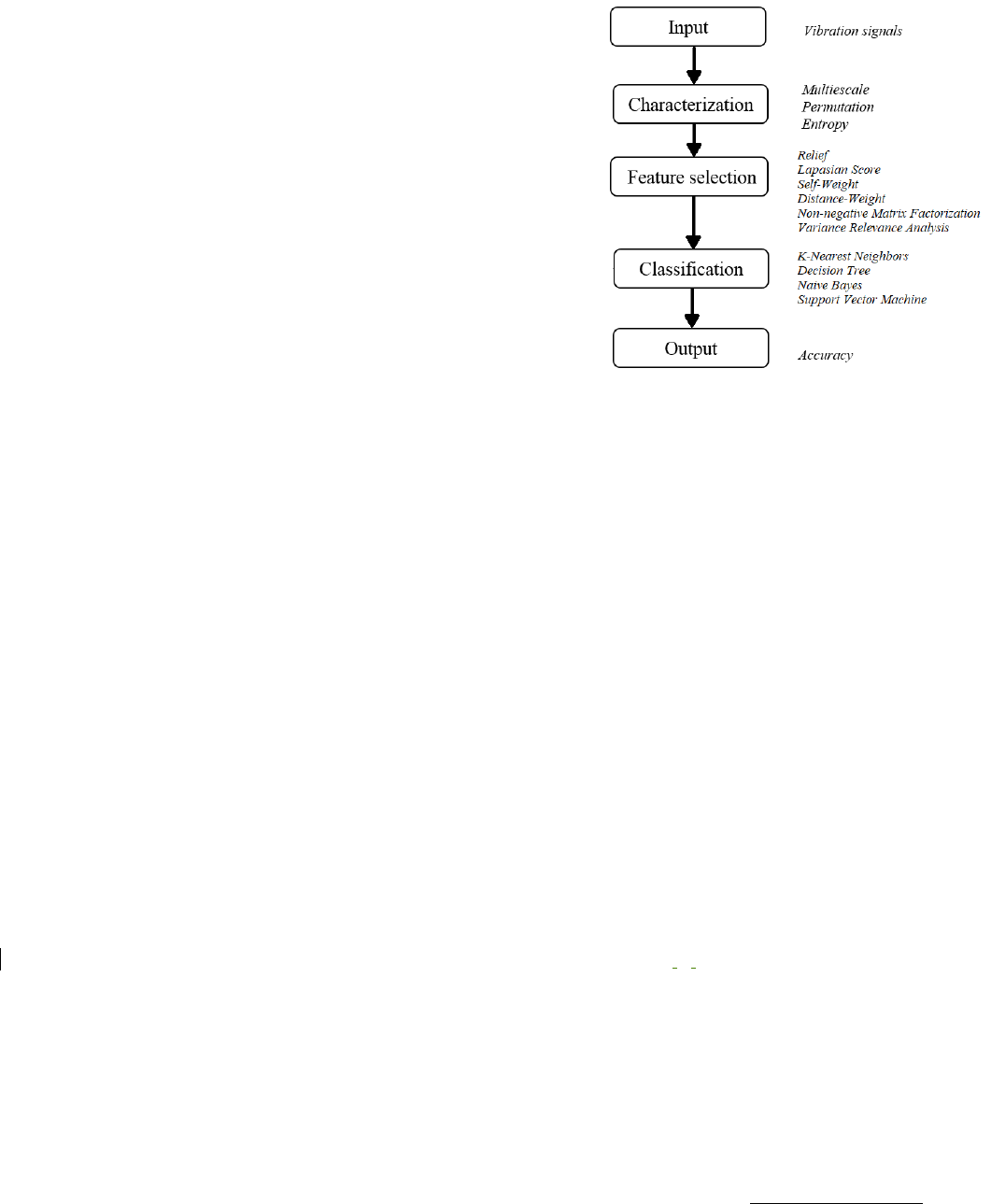

This article presents a methodology for the diagnosis of
bearing failures based on the Multiscalar Permutation Entropy
(MPE) technique. The MPE proves to be a highly effective
characterization methodology to find information that allows
to separate classes. Specifically, in the mechanical vibration
signals that have a high non-stationary, the MPE manages to
find characteristics that would not be detected by other
methodologies. The MPE measures the non-linear dynamics
existing in non-stationary time series and when combined with
Relieff as a feature selection technique, a robust tool for
classification applications is obtained. For the classification a
method of K-Neighbors Nearest (KNN) was used, which
manages to adapt to the nature of the characteristics. The
results confirm a classification accuracy of more than 99:9%
with a computation time of 16:37 seconds, which exceeds the
results established in the literature.
ACKNOWLEDGMENT
The authors thank the Master in Electrical and Mechanical
Engineering of the Technological University of Pereira for
their support throughout the investigation. In addition, we
would like to thank COLCIENCIAS for supporting the project
entitled: “Desarrollo de un sistema de monitoreo para el
análisis energético y de condición de emisiones en motores de
combustión interna diésel con base en técnicas no
destructivas” with code 1110-776-57801, through which the
research described in this article was developed.
REFERENCES
[1]. P Zheng, and H Yang, “Generalized composite multiscale
permutation entropy and laplacian score based rolling bearing fault
diagnosis,” Mech. Syst. Signal Process., vol. 99, pp. 229–243,
2018. DOI: https://doi.org/10.1016/j.ymssp.2017.06.011
[2]. R Tiwari, V Gupta, and P. K Kankar, “Bearing fault diagnosis
based on multi-scale permutation entropy and adaptive neuro fuzzy
classifier,” J. of Vib. Control, vol. 21, no 3, pp. 461–467, 2015.
DOI: https://doi.org/10.1177/1077546313490778
[3]. H. Martin, and F. Honarvar, “Application of statistical moments to
bearing failure detection,” Appl. Acoust, vol. 44, pp. 67–77, 1995.
DOI: https://doi.org/10.1016/0003-682X(94)P4420-B
[4]. R. B. W. Heng, and M. J. M. Nor, “Statistical analysis of sound
and vibration signals for monitoring rolling element bearing
condition,” Appl. Acoust., vol. 53, 211–226, 1998. DOI:
https://doi.org/10.1016/S0003-682X(97)00018-2
[5]. Z. Wei, Y. Wang, and H. Shuilong, “A novel intelligent method
for bearing fault diagnosis based on affinity propagation clustering
and adaptive feature selection,” Knowledge-Based Systems, vol.
116, pp. 1–12, 2017. DOI:
https://doi.org/10.1016/j.knosys.2016.10.022
[6]. J. S. Richman, and J. R. Moorman, “Physiological time-series
analysis using approximate entropy and sample entropy,”
American J. of Physiology Heart and Circulatory Physiology, vol.
278: pp. 39–49, 2000. DOI:
https://doi.org/10.1152/ajpheart.2000.278.6.H2039
[7]. M. Pincus, “Approximate entropy as a measure of system
complexity,” Proceedings of the National Academy of Sciences,
vol. 88, no 6, pp. 2297–2301, 1991. DOI: 10.1073/pnas.88.6.2297
[8]. M. Costa, A. Goldberger, and P. Chung, “Multiscale entropy
analysis of physiologic time series,” Physical Review Letters, vol.
89, pp. 220–232, 2001. DOI: 10.1103/PhysRevLett.89.068102
[9]. C. Bandt, and B. Pompe, “Permutation entropy: A natural
complexity measure for time series,” Physical Review Letters, vol.
88, pp. 74–102, 2002. DOI: 10.1103/PhysRevLett.88.174102
[10]. W. Aziz, and M. Arif, “Multiscale permutation entropy of
physiological time series,” 2005 Pakistan Section Multitopic
Conference, Karachi 2005, vol. 53, pp.1–6, 2005. DOI:
https://doi.org/10.1109/ inmic.2005.334494
[11]. K. Zeng, and G. Ouyang, “Characterizing dynamics of absence
seizure EEG with spatial-temporal permutation entropy,”
Neurocomputing, vol. 275, pp. 577 – 585, 2018. DOI:
https://doi.org/10.1016/j.neucom.2017.09.007
[12]. S. Daza, J. Arias, and J. Llorente, “Dynamic feature extraction: an
application to voice pathology detection,” Intelligent Automation
and Soft Computing, vol. 15, pp. 667–682, 2009. DOI:
10.1080/10798587.2009.10643056
[13]. X. Zhang, Y. Liang, J. Zhou, and Y. Zang, “A novel bearing fault
diagnosis model integrated permutation entropy, ensemble
empirical mode decomposition and optimized SVM,”
Measurement, vol. 69, pp. 164–179, 2015. DOI:
https://doi.org/10.1016/j.measurement.2015.03.017
[14]. J. Zheng, J. Cheng, and Y. Yang, “A rolling bearing fault diagnosis
approach based on LCD and fuzzy entrop,” Mech. and Mach.
Theory, vol. 70, pp. 441–453, 2013. DOIO:
https://doi.org/10.1016/j.mechmachtheory.2013.08.014
[15]. H. Minghong, and P. Jiali, “A fault diagnosis method combined
with LMD, sample entropy and energy ratio for roller bearings,”
Measurement, vol. 76, pp. 7–19, 2015. DOI:
https://doi.org/10.1016/j.measurement.2015.08.019
[16]. M. Yuwono, Y. Qin, and J. Zhou, “Automatic bearing fault
diagnosis using particle swarm clustering and hidden Markov
model,” Engin. Appl. of Artif. Intell., vol. 47: pp. 88–100, 2016.
DOI: https://doi.org/10.1016/j.engappai.2015.03.007
[17]. B: Muruganatham, S. Krishnakumar, and S. Murty, “Roller
element bearing fault diagnosis using singular spectrum analysis.
Mech. Syst. Signal Process., vol. 35, no 1, pp. 150–166, 2013.
DOI: https://doi.org/10.1016/j.ymssp.2012.08.019
[18]. B. Jaouherl, N. Fnaiech, and L. Saidi, “Application of empirical
mode decomposition and artificial neural network for automatic
bearing fault diagnosis based on vibration signals,” Applied
