Scientia et Technica Año XXVI, Vol. 26, No. 04, diciembre de 2021. Universidad Tecnológica de Pereira. ISSN 0122-1701 y ISSN: 2344-7214
434
Abstract Video services are becoming more and more popular
for mobile network users and require greater and greater
resources and provisions from telecommunications service
providers. But operators suffer from problems of interoperability
between the different adaptive transmissions techniques they
employ in an attempt to satisfy the quality of experience (QoE) of
the service provided to users and improve network performance.
This article presents a comparison of four such streaming
techniques - DASH (dynamic adaptive streaming over HTTP),
HDS (HTTP dynamic streaming), HLS (HTTP2 live streaming)
and HSS (HTTP smooth streaming) - used in a live video playback
by a user in different test scenarios on an emulated long-term
evolution (LTE) network. Comparison of performance was
carried out using the mean opinion score (MOS) metric calculated
based on ITU-T Recommendation P.1203. This recommendation
focuses on bitstream-based parametric quality assessment of
progressive downloads and adaptive audiovisual streaming
services through a reliable transport protocol. From the results
obtained in the evaluation of the different adaptive transmission
techniques for the test scenarios presented, it is observed that the
DASH protocol presented a better performance in the QoE
evaluation using the MOS metric compared to the other protocols
analyzed.
Index TermsAdaptive Transmission, LTE, MOS, QoE, Video.
Resumen El servicio de video es cada vez más popular por parte
de los usuarios de redes móviles, además exige mayores recursos y
prestaciones por parte de los proveedores de servicios de
telecomunicaciones. Para satisfacer la calidad de la experiencia del
servicio suministrado a los usuarios - QoE y mejorar el
rendimiento de las redes, los operadores utilizan diferentes
técnicas de transmisión adaptativa, las cuales presentan
inconvenientes de interoperabilidad entre ellas. En este artículo se
presenta una comparación de las técnicas de streaming DASH
(dynamic adaptive streaming over HTTP), HDS (HTTP dynamic
streaming), HLS (HTTP2 live streaming) and HSS (HTTP smooth
streaming) empleadas en la reproducción de vídeo en vivo por
parte de un usuario en diferentes escenarios de prueba, en una red
LTE emulada. La comparación de desempeño se realiza mediante
la métrica de la MOS calculada a partir de la Recomendación ITU-
T P.1203. Esta recomendación se centra en la evaluación de la
calidad paramétrica basada en flujos de bits de descargas
progresivas y servicios de transmisión audiovisual adaptativa a
This manuscript was sent on June 11, 2021 and accepted on November 25,
2021.
H-F.Bermudez. Author, He is now with the Faculty of Engineering, Quindio
University, Armenia - Colombia (e-mail: hfbermudez@uniquindio.edu.co).
través de un protocolo de transporte fiable. A partir de los
resultados obtenidos en la evaluación de las diferentes técnicas de
transmisión adaptativa para los escenarios de prueba presentados,
se observa que el protocolo DASH presentó un mejor desempeño
en la evaluación de QoE utilizando la métrica MOS en
comparación con los otros protocolos analizados.
Palabras clavesLTE, MOS, QoE, Transmisión adaptativa,
Video.
I. INTRODUCTION
ecent years have seen an increase in the number of users
using video streaming services to play content that is either
live (LVS - live video streaming) or on demand (VoD -
video on demand). The number of users and mobile devices
(e.g. laptop, smartphone, tablet) that access these types of
service through wireless mobile networks is also increasing [1].
Moreover, the wide variety of devices offered by the market
increases the variability of characteristics between devices:
screen size or resolution, type of internet connection, contracted
bandwidth, and network status at the time of video playback,
etc.
Success in video streaming focuses on the user being able
to display content on their device with the minimum of failure
or delay. The service provider is thus obliged to undertake
certain network management tasks - the monitoring and control
of bandwidth, delay, jitter, throughput and packet loss - that
ensure an adequate level of quality for users. These tasks are
much more complex in a wireless environment where
difficulties include wireless signal coverage, a high rate of
packet loss, and instability of the wireless channel, these being
the result of phenomena pertaining to the channel itself, such as
multipaths, fading, interference, and noise [2], [3], [4]. These
can considerably affect the performance of wireless mobile
networks and bring down the quality of experience evaluation
[5].
Video services have undergone a great transformation in
recent times with respect to protocols and techniques used for
their transport. In early versions of video delivery services,
UDP (user datagram protocol) was used as transport protocol
due to its simplicity and the reduced amount of control traffic.
W. Y. Campo. Author, He is now with the Faculty of Engineering, Quindio
University, Armenia - Colombia (e-mail: wycampo@uniquindio.edu.co).
E. Astaiza. Author, He is now with the Faculty of Engineering, Quindio
University, Armenia - Colombia (e-mail: eastaiza@uniquindio.edu.co).
QoE estimation for different adaptive streaming
techniques in mobile networks
Estimación de la QoE para diferentes técnicas de streaming adaptativo en redes
móviles
H. F. Bermúdez-Orozco ; W. Y. Campo-Muñoz ; E. Astaiza-Hoyos
DOI: https://doi.org/10.22517/23447214.24746
Artículo de investigación científica y tecnológica
R
Scientia et Technica Año XXVI, Vol. 26, No. 04, diciembre de 2021. Universidad Tecnológica de Pereira.
435
Later, with the improvement of data networks, the reliable TCP
(transmission control protocol) was adopted and, today, the
most popular video services on the Internet, for example, VoD
or LVS use adaptive transport techniques in preference to
Hypertext Transfer Protocol (HTTP) [6]. These techniques
adapt the speed of video data transmission to the network
available bandwidth, so that even while in progress they adopt
the most suitable video encoding settings given the conditions
of end user and data path [7]. The following may be considered
among the most popular video adaptation techniques: (i) HTTP
smooth streaming (HSS) from Microsoft [8], (ii) HTTP2 live
streaming (HLS) from Apple [9], (iii) HTTP dynamic streaming
(HDS) from Adobe [10], and finally (iv) dynamic adaptive
streaming over HTTP (DASH), from the Moving Picture Expert
Group (MPEG), defined as an ISO/IEC standard (23009 -1:
2012) [11].
Regarding the use of video streaming techniques in wireless
mobile networks, LTE technology since its inception has
progressively incorporated improvements in response to the
increase in mobile network traffic, seeking to enhance the video
experience for its end users. These enhancements support
features such as fast initial startup, bandwidth efficiency,
adaptive bit rate switching, adaptation to content delivery
network (CDN) properties, reuse of HTTP servers and caches,
reuse of existing media playback engines, support for delivery
of services on demand, live and displaced in time and simplicity
for wide adoption [12].
Meanwhile, for video quality measurements, two contexts
can be differentiated - subjective quality measures and
objective quality measures [13]. As regards the former, the
International Telecommunications Union (ITU-T) has
formalized a number of methodologies for their assessment in
several recommendations, among which are ITU-T P.910 and
P.911, [14], [15], which look to obtain the average quality
rating of all users for a particular video transmission. This rating
is known as the mean opinion score (MOS). Objective quality
metrics, on the other hand, are algorithms designed to
characterize video quality and predict the MOS of users. These
metrics are not based on service user surveys but on parameters
measured within the network or video stream itself. Thus,
Recommendations P.1201 (ITU-T, 2012), P.1202 [16] and
P.1203 [17] provide an overview of models for non-intrusive
quality monitoring based on the IP protocol by analyzing packet
header information and video signal flow. In this research,
Recommendation P.1203 was used since it focuses on
evaluation of parametric quality based on video streams of
progressive downloads and adaptive audiovisual transmission
services through a reliable transport protocol such as TCP. The
P.1203 standard meanwhile is one of the first standardized QoE
estimation methodologies to incorporate machine learning
techniques for QoE prediction. The aim of this study therefore
is to estimate QoE of the main adaptive streaming techniques
for a particular service, in this case LVS, over 4G networks
emulated using Network Simulator-NS3 software. The main
contributions of the work are as follows: (i) Compare
performance of the most outstanding current adaptive streaming
techniques using the P.2103 standard and (ii) analyze which
technique performs best for the LVS service in an emulated 4G
network.
The paper is organized as follows. In Section II, studies
related to techniques of sending video through adaptive
streaming are analyzed. Section III presents the methodology.
In section IV, the results and their discussion are found and
finally, Section V presents the conclusions and identifies future
work.
II. RELATED WORK
The following presents an analysis of the work reviewed on this
topic. In [18] the authors studied the effect of various QoS
parameters on the estimation of QoE, for which they presented
the assessment of three video streaming protocols, MPEG-
DASH, RTSP and RTMP (Real Time Messaging Protocol), for
VoD and LVS services over 4G and WiFi technologies. In the
experiments carried out for the assessment, the Rohde &
Schwarz CMW500 broadband communications analyzer and
smartphones were used. Important contributions of the work
included the study of comparative performance of adaptive and
non-adaptive video streaming protocols under real network
scenarios in terms of QoE and the comparative assessment of
two parametric models to evaluate QoE according to the ITU-
T R.1201 recommendation. All results were obtained from
measurement campaigns in a real test scenario, making it
impossible to vary network parameters that can be decisive in
QoE evaluation. The authors of [19] analyzed the performance
of different adaptive video transmission transport protocols,
namely DASH, HLS, HSS and HDS, in different test scenarios
with real situations of video signal cuts using the Net.Storm
impairment generator [20]. The comparative analysis focused
on studying the behavior of different players, both from TV
providers and standard players, obtaining conclusions about the
robustness of each of the adaptive streaming techniques
analyzed. The disadvantage of this study was that the authors
for the construction of the experimentation scenarios used a
CDN service provider company, making it difficult to
manipulate the initial configuration parameters of the services
used. In [21], an assessment of network architectures used by
commercial companies was carried out, adaptive streaming
techniques (DASH, HLS, HSS and HDS) were studied and a
case study was designed for a network of video streaming for
telemedicine applications between the hospitals of three small
coastal cities and the Hospital de la Seguridad Social in
Guayaquil, Ecuador.
The authors of [22] presented a CDN test bed using HTTP
adaptive transmission technologies. The assessment results
were calculated based on QoS parameters (bandwidth, delay
and packet loss), obtaining the performance of the use of
adaptive streaming techniques with CDN. As the main
conclusion, the authors showed that the use of these types of
adaptive technologies improves the performance of server load
and reduces network congestion, thus providing a better
experience for end users. However, the authors did not specify
the type of streaming technology used. In [23], the authors
offered an overview of the state of the art of adaptive streaming
Scientia et Technica Año XXVI, Vol. 26, No. 04, diciembre de 2021. Universidad Tecnológica de Pereira.
436
techniques over HTTP through multimedia domains and
different networks. Results obtained were shown to analyze the
challenges and solutions in adaptive transmission algorithms,
QoE improvement, network protocols, buffering, etc. The
authors also focused on various challenges about the factors that
influence QoE in a variable network condition. The authors of
[24] proposed a virtual test bed for the implementation of
adaptive video streaming experiments. The authors studied
different parameters that affect QoE performance, among
which are initial delay (start delay at the beginning of a video
playback), changes in video encoding, frequency switches (the
number of times quality is changed), accumulated video time
(the number and duration of video stop events - stallings), CPU
usage, and battery power consumption. Furthermore, the
authors found a relationship of these parameters with a
subjective estimate of QoE. To estimate QoE, original and
received videos on the virtual benchmark were evaluated by
expert users. As a contribution to the body of work reviewed in
this section, this research presents the comparison of the
different adaptive streaming techniques most widely used
among end users, through QoE estimates, using for the first
time the methodology proposed in Recommendation P.1203 in
a 4G (LTE) wireless environment.
III. METHODOLOGY
An emulation scenario was built in order to estimate QoE
based on ITU-T Recommendation P.1203 and carry out a
performance comparison of the DASH, HDS, HLS and HSS
adaptive streaming techniques under real operating conditions.
The scenario was previously proposed in [25] and then adapted
and validated in [26] and [27]. This scenario is made up of three
personal computers (PC), the characteristics of which can be
seen in Table I. Fig. 1 shows the diagram of deployment of the
emulation system.
TABLE I
CHARACTERISTICS OF PCS USED IN THE EMULATION SYSTEM
Characteristics
Operative system
Software
Intel Core 2
at 2.13 GHz,
with 4 GB of
RAM
Linux Ubuntu
14.04 LTS
NS3.26
Intel Core i7-
3612QM CPU
2.1GHz, 8 GB
of RAM
Windows 7
Professional
Wowza
streaming
engine
Wireshark
Intel Core 2
Duo CPU
2.1GHzx2, 4
GB of RAM
Windows 7
Professional or
Linux Ubuntu
VLC
Akamai
Adaptive
media
player
Wireshark
Fig. 1. Deployment diagram of the emulation system
PC1 hosts the 4G-LTE network emulated with the LENA
library on NS3. This LTE network is composed of a remote
host, a SGW/PGW node (Serving Gateway/Packet Data
Network Gateway), an eNB base station (evolved NodeB) and
an end user equipment (UE) that acquires the role of mobile
device. Real video traffic thus reaches the UE node, injected
into the system by the LVS Wowza streaming server (PC2)
through the emulated LTE network. Since within the emulated
system the UE consumes the video traffic but does not view it,
PC3 is used for the reproduction and monitoring of the
information received by the virtualized UE node. The HIL
(Hardware in the Loop) platform is used to enable
communication between PC2-Host-Remote and UE-PC3,
allowing PC1 to be taken as a black box with virtualized
components that receives and delivers data to real end systems,
PC2 and PC3.
Three test scenarios were defined in order to carry out
performance comparison of the different adaptive streaming
techniques: (1) a user located 30m from the eNB, for whom the
different network delay times {0, 25, 50, 75, 100, 125 and 150
ms} were varied in a controlled way, as were different
Scientia et Technica Año XXVI, Vol. 26, No. 04, diciembre de 2021. Universidad Tecnológica de Pereira.
437
percentages of packet loss {0, 0.5, 1, 2, and 3%}. This scenario
is considered as a static scenario; (2) a UE that moved away
from the eNB with uniform speed and direction, for which
different speeds {1, 1.5, 2, 2.5 and 3 m/s} are varied in a
controlled way, while direction follows a straight line y = x; and
finally, (3) a UE that moved away from the eNB with random
speed and direction. The speeds varied between 0 and 5m/s, and
the random direction was located on the xy plane forming an
80m x 80m square of dimensions. Scenarios (2) and (3) were
considered as dynamic scenarios. For each of the test scenarios,
ten tests of 180s each of the video clip “Big Buck Bunny” [28]
were transmitted live, consumed by the customer using the
emulated 4G network (LTE). At the customer, the parameters
necessary to estimate QoE were extracted using the
methodology proposed by the P.1203 standard. The parameters
were encoding settings (see Table II) and initial buffer and
stalling events (quantity, start time, duration). A script
developed in Matlab® was used to estimate QoE.
TABLE II
CODING ADJUSTMENTS
Parameter
Description
Video coding
Coder
H.264
Resolutions (px)
240p (426x240); 360p (640x360); 480p
(854x480); 720p (1280x720); 1080p
(1920x1080).
Bit coding rate (Kbps)
528 for 240p; 878 for 360p; 1128 for 480p;
2628 for 720p; 4628 for 1080p
Frames per second
30
Audio coding
Channels
Stereo
Bitrate (Kbps)
96 for 240p; 128 for 360p, 480p; 192 for
720p, 1080p
Sample frequency
44.100 kHz
IV. RESULTS AND DISCUSSION
Below, a comparison is found of the four HTTP adaptive
streaming techniques for the different test scenarios.
Comparisons were made based on the results obtained for the
QoE estimation from the MOS, the assessment scale of which
was the following: bad (1-1.9), poor (2-2.9), fair (3-3.9), good
(4-4.9), and excellent (5) [15]. The results presented correspond
to the mean value of ten tests carried out for each of the test
scenarios. QoE is calculated by applying the methodology in
the P.1203 standard. All measurements were made for the
provision of the LVS service in the emulated 4G network
described above.
Figs. 2-5 present the QoE estimate from MOS calculations
for the different test scenarios. Fig. 2 shows for Test Scenario 1
how DASH and HLS adaptive streaming techniques performed
best when controlled delays of less than or equal to 50 ms are
introduced to the emulated system, with HSS and HDS doing
less well. It can be seen that, after 75 ms of delay, the QoE
estimate for the different techniques studied is considered poor,
since QoE is located in the qualification range 2-2.9. Delay
values of up to 50 ms for the DASH technique can be
considered as acceptable on obtaining a QoE of at least fair
(MOS = 3) for the LVS service in the 4G system studied.
In Fig. 3, for test scenario 1, from a QoE perspective it can
be seen that the performance of the DASH adaptive streaming
technique was superior to the performance obtained with the
other streaming techniques when different packet loss values
were introduced in a controlled way. For the DASH technique,
it is clearly seen that for values less than 0.5% packet loss, the
QoE estimate through MOS is greater than 4, considered a good
evaluation, i.e. in the assessment range: 4-4.9. On the contrary,
for values greater than 0.5% packet loss, QoE evaluation was
considered as bad, i.e. in the assessment range: 2-2.9, rendering
the service unviable from the user point of view.
Fig. 2. Estimated QoE in scenario 1 (user located 30m from the eNB to which
different network delay times were varied in a controlled manner).
Fig. 3. Estimated QoE in scenario 1 (user located 30m from the eNB, to which
different percentages of packet loss were controlled in the network).
Fig. 4 presents the results obtained for test scenario 2. It can
be seen that the technology with the best performance in terms
of user mobility was DASH. With this technique, estimation of
QoE was good, since it is in the rating range of 4-4.9 for speeds
between 1-2.5 m/s. Only for the speed of 3m/s was the
evaluation of QoE estimate fair, i.e. in the evaluation range 3-
3.9. For the other technologies, HLS, HDS and HSS, it can be
seen that the performance measured by estimating QoE was fair
(evaluation range: 3-3.9) for speeds of 1 to 2.5 m/s. Only HSS
Scientia et Technica Año XXVI, Vol. 26, No. 04, diciembre de 2021. Universidad Tecnológica de Pereira.
438
technology for the speed of 3m/s presented a poor QoE
estimate, i.e. in the range: 2-2.9.
Fig. 4. Estimated QoE in scenario 2 (UE moving away from eNB with uniform
speed and direction).
Fig. 5 shows the results obtained for test scenario 3. It was
observed how the DASH technique again returned the best
performance (MOS on the scale 4-4.9) in terms of QoE when
the user moves at a random speed between 1 - 5m/s and in a
random direction within an 80m x 80m rectangle. The rest of
the technologies obtained a fair QoE estimate (evaluation
range 3-3.9).
Fig. 5. Estimated QoE in scenario 3 (UE moving away from the eNB with
random speed and directions).

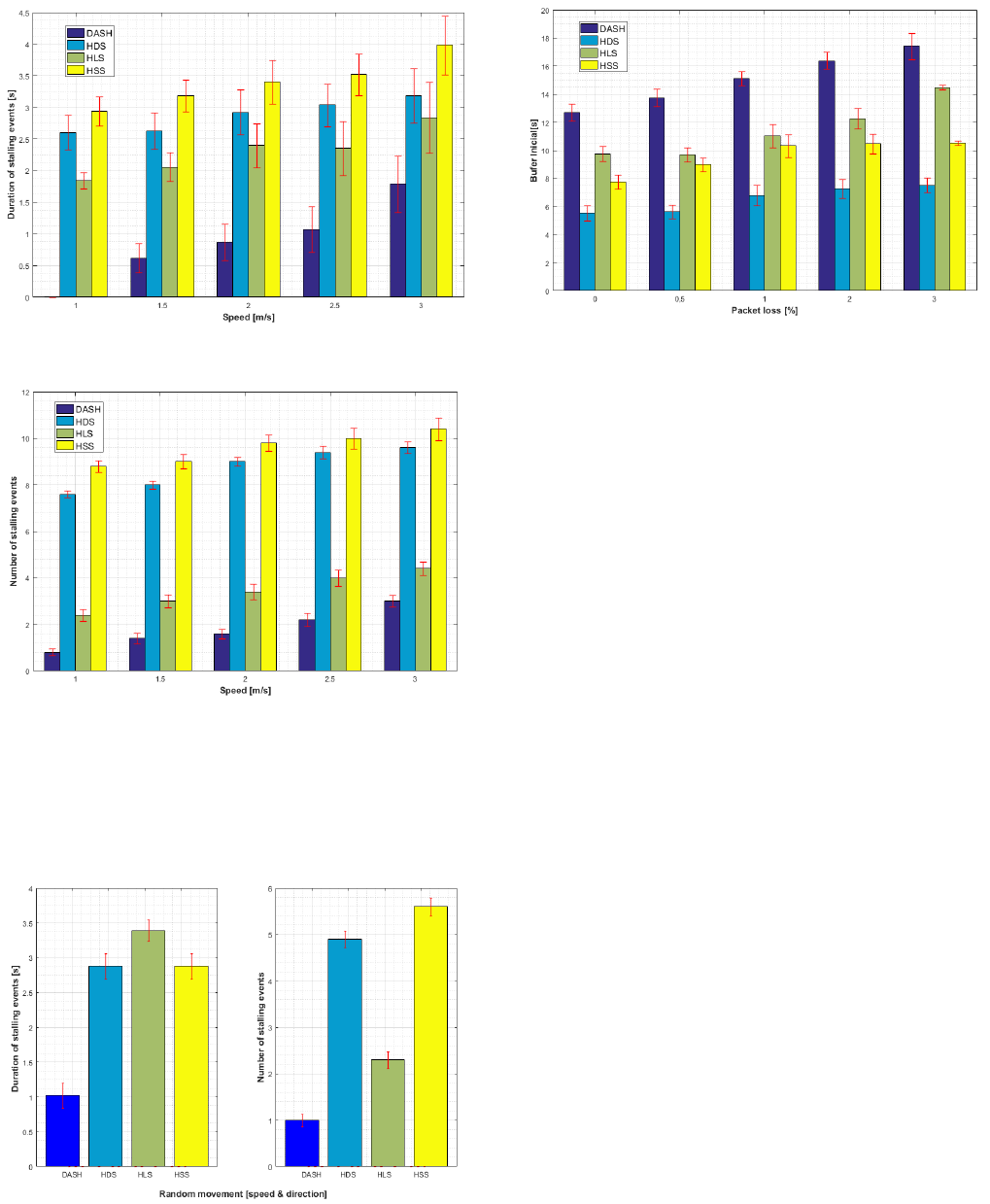

Figs.6-10 show results obtained for stalling events for
different test scenarios, as defined in the P.1203 standard as
having a high impact on QoE estimation [24]; Fig. 6 and 7 show
duration and quantity of stalling events for test scenario 1. It
was observed, in Fig. 6, how as controlled delays greater than
100 ms are introduced in the emulation system, a longer
duration of stalling events is encountered in DASH and HDS
techniques. On the other hand, the number of stalling events
(see Fig. 7) increases in a less abrupt way as delay time
increases for the HDS and DASH techniques. In the case of
DASH, the number of stalling events reaches its maximum
value (approx. 4) when the delay was of the order of 100 ms,
and then decreases slightly. However, this does not mean that
DASH performance improves from 100 ms to 125 or 150 ms.
On observing the duration of the stalling events for DASH, it
can be seen that, although there were fewer stalling events, their
duration was much longer, even exceeding 30 s. This means
that of the 180 s of video playback, 99 s is stopped. As a result,
QoE estimate is very low for DASH in delays above 100 ms, as
evidenced in Fig. 2, where a QoE estimate of bad was observed
(evaluation range: 1-2). In conclusion, it can be stated that for
DASH and HDS streaming techniques, the higher the delay, the
fewer stalling events but the longer the duration. While for HLS
and HSS, the more delay the more stalling events but shorter.
For test scenario 2, where the UE moves away from the eNB
with uniform speed and a single direction, it was observed in
Figures 8 and 9 that the duration and number of stalling events
affect HDS and HSS technologies much more than with DASH
and HLS. In addition, DASH presents fewer stalling events than
HLS and has a shorter average duration, see Fig. 9. Comparing
with the QoE measurements, DASH and HLS obtained better
results with a MOS of above 3.25 for all speeds.
Fig. 6. Duration of stalling events for emulation scenario 1.
Fig. 7. Number of stalling events for emulation scenario 1.
Scientia et Technica Año XXVI, Vol. 26, No. 04, diciembre de 2021. Universidad Tecnológica de Pereira.
439
Fig. 8. Duration of stalling events for emulation scenario 2.
Fig. 9. Number of stalling events for emulation scenario 2.
Fig. 10 shows the results obtained for test scenario 3. A
behavior very similar to scenario 2 was observed, where the
DASH technique presented a better performance in terms of
quantity and duration of stalling events.
Fig. 10. Stalling events for emulation scenario 3.
Fig. 11. Initial buffer for emulation scenario 2.
Meanwhile, with respect to the initial buffer parameter, Fig.
11 shows its duration for scenario 2, when different values of
percent packet loss were entered in a controlled manner. It was
observed that, as the percentage of packet loss increases, the
duration of the initial buffer increases, and is greater for the
DASH and HLS technologies than for HDS and HSS. By
associating these results with the QoE estimates, it could be
inferred that for scenario 2, the use of a larger initial buffer is
more favorable in terms of QoE. Similar behavior of the initial
buffer parameter was observed in test scenarios 1 and 3; as well
as when the delay or speed was varied in a controlled fashion.
V. CONCLUSIONS
A comparative study of the performance of different video
streaming techniques based on QoE was carried out through a
controlled variation of such QoS parameters as delay and packet
loss in different static and dynamic experimentation scenarios
defined within the research. Regarding the delay parameter, the
following observations were made: (i) the value of 50 ms was
considered to be the maximum limit to ensure quality of LVS
service in 4G (LTE) networks in dynamic and static scenarios.
Furthermore, 50 ms was considered quite a demanding value,
since the reference [29] values given for delay range from 0 to
400 ms. (ii) The DASH adaptive streaming technique
outperformed the other techniques studied, a behavior that was
most evident in the dynamic scenarios. (iii) Regarding the
stalling and initial buffer events for the static and dynamic
scenarios, it was evident that as delay increased, the duration
and number of stalling events increased for all the adaptive
streaming techniques studied. The strongest performance with
this parameter was again observed for the DASH technique.
Finally, on controlling variations in the packet loss parameter
for the defined static and dynamic scenarios, the following
observations were made: (i) for all the scenarios and tests
carried out under the specific operating parameters, the adaptive
streaming that performed best with respect to QoE (MOS) was
once again that of DASH. (ii) It was observed that on exceeding
0.5% packet loss, the LVS service was rendered unviable, from
the point of view of the user, given that for these values of
percent packet loss, the QoE assessment achieved an evaluation
only of bad (2-2.9) or lower. According to the results obtained,
Scientia et Technica Año XXVI, Vol. 26, No. 04, diciembre de 2021. Universidad Tecnológica de Pereira.
440
the use of the DASH protocol may become the solution to the
different interoperability problems that telecommunications
operators present due to the use of different adaptive streaming
techniques. Currently, the authors are conducting research to
establish relationships between different QoS metrics and the
objective estimate of QoE for the streaming service;
additionally, this research will allow extending studies and
emulation scenarios to other access technologies, such as WiFi
networks, LTE-A Pro and 5G.
ACKNOWLEDGMENT
Very special thanks are due to the Telematics Engineering
Research Group - GIT of the Universidad Politécnica de
Cartagena, in Spain, where the emulation scenario that provided
the starting point for carrying out this research was
implemented, and in particular thanks to Dr. María Dolores
Cano B. and Dr. Ramón Sánchez Iborra. In addition, we are
very grateful to Mr. Colin McLachlan for suggestions related to
the english text.
REFERENCES
[1] Ericsson, “Mobile Network Evolution-4G to 5G|Mobility Report,”
Ericsson.com, Sep. 07, 2020. https://www.ericsson.com/en/mobility-
report (accessed Feb. 16, 2021).
[2] O. B. Maia, H. C. Yehia, and L. de Errico, A concise review of the
quality of experience assessment for video streaming,” Computer
Communications, vol. 57, pp. 112, Feb. 2015, doi:
10.1016/j.comcom.2014.11.005.
[3] D. Tse and P. Viswanath, Fundamentals of Wireless Communication.
Cambridge University Press, 2005.
[4] L. Guo and Y. Meng, “What is wrong and right with MSE?,” 2006, pp.
212215.
[5] H.-F. Bermudez, “Modelado de tráfico para el servicio de streaming de
video en vivo -LVS en redes móviles LTE con calidad de la
experiencia,” Tesis Doctoral, Universidad del Cauca, Popayán -
Colombia, 2020.
[6] D. Ghadiyaram, J. Pan, and A. C. Bovik, “A Subjective and Objective
Study of Stalling Events in Mobile Streaming Videos,” IEEE
Transactions on Circuits and Systems for Video Technology, vol. 29,
no. 1, pp. 183197, Jan. 2019, doi: 10.1109/TCSVT.2017.2768542.
[7] ISO, “ISO/IEC 23009-1:2014(E). Information technology Dynamic
adaptive streaming over HTTP (DASH).” 2014.
[8] Jbocharov, “Smooth Streaming Transport Protocol,” 2008.
https://docs.microsoft.com/en-us/iis/media/smooth-streaming/smooth-
streaming-transport-protocol (accessed Jun. 03, 2020).
[9] Apple, “HTTP Live Streaming (HLS) - Apple Developer,” 2014.
https://developer.apple.com/streaming/ (accessed Jun. 03, 2018).
[10] Adobe, “Adobe HTTP Dynamic Streaming (HDS) Technology Center
| Adobe Developer Connection,” 2014.
https://www.adobe.com/devnet/hds.html?origref=https%3A%2F%2F
www.google.es%2F (accessed Jun. 03, 2020).
[11] ISO/IEC, “MPEG Dynamic Adaptive Streaming over HTTP (MPEG-
DASH),” 2010. https://mpeg.chiariglione.org/standards/mpeg-dash
(accessed Jun. 03, 2018).
[12] T. Stockhammer, “Dynamic adaptive streaming over HTTP --:
standards and design principles,” Munich, Germany, Feb. 2011, pp.
133144. doi: 10.1145/1943552.1943572.
[13] H. F. Bermúdez, J. L. Arciniegas, and E. Astaiza, “State of the art of
QoE assessment methods, and emulation environments for the video
service in LTE networks,” Entre Ciencia e Ingeniería, vol. 10, no. 20,
pp. 6675, Dec. 2016, Accessed: May 27, 2017. [Online]. Available:
http://www.scielo.org.co/scielo.php?script=sci_abstract&pid=S1909-
83672016000200010&lng=en&nrm=iso&tlng=es
[14] ITU-T, “P.911: Subjective audiovisual quality assessment methods for
multimedia applications,” Dec. 1998. https://www.itu.int/rec/T-REC-
P.911-199812-I/en (accessed Apr. 12, 2018).
[15] ITU-T, “P.910: Subjective video quality assessment methods for
multimedia applications,” Apr. 1999. https://www.itu.int/rec/T-REC-
P.910-200804-I/en (accessed Apr. 12, 2020).
[16] ITU-T, “P.1201.2 : Parametric non-intrusive assessment of audiovisual
media streaming quality - Higher resolution application area,” 50 2013.
https://www.itu.int/rec/T-REC-P.1201.2 (accessed Apr. 12, 2018).
[17] ITU-T, “P.1203.3 : Parametric bitstream-based quality assessment of
progressive download and adaptive audiovisual streaming services over
reliable transport - Quality integration module,” Jan. 2019.
http://www.itu.int/rec/T-REC-P.1203.3-201710-I (accessed Dec. 02,
2020).
[18] A. Aloman, A. I. Ispas, P. Ciotirnae, R. Sanchez-Iborra, and M. D.
Cano, “Performance Evaluation of Video Streaming Using MPEG
DASH, RTSP, and RTMP in Mobile Networks,” in 2015 8th IFIP
Wireless and Mobile Networking Conference (WMNC), Oct. 2015, pp.
144151. doi: 10.1109/WMNC.2015.12.
[19] V. Mata G., “Análisis y Comparativa de los Protocolos de Transmisión
de vídeo Adaptativo por Internet,” Tesis, Carlos III de Madrid, Leganés
España, 2014.
[20] Albedo, “Net.Time clock,” PTP clocks, 10GbE testers, C37.94 test,
2019. http://www.albedotelecom.com/ (accessed Jun. 05, 2020).
[21] E. Intriago A., “Análisis de Tecnologías de Streaming: Evaluación de
Protocolos y Diseño de un Caso de Estudio,” Trabajo fin de Máster,
Universidad Politécnica de Madrid, Madrid, 2016.
[22] M. Taha, “A Novel CDN Testbed for Fast Deploying HTTP Adaptive
Video Streaming,” Jun. 2016, pp. 65–71. Accessed: Jun. 07, 2018.
[Online]. Available:
http://dl.acm.org/citation.cfm?id=3021385.3021399
[23] M. Taha, J. Lloret, A. Canovas, and L. Garcia, “Survey of
Transportation of Adaptive Multimedia Streaming service in Internet,”
Network Protocols and Algorithms, vol. 9, no. 12, pp. 85125, Jun.
2017, doi: 10.5296/npa.v9i1-2.12412.
[24] M. Taha, J. Lloret, A. Ali, and L. Garcia, “Adaptive video streaming
testbed design for performance study and assessment of QoE,”
International Journal of Communication Systems, vol. 31, no. 9, Mar.
2018, doi: 10.1002/dac.3551.
[25] F. Abdurrahman et al., “Real Time Video Streaming over NS3 based
Emulated LTE Networks,” 2014, vol. 4, pp. 659663.
[26] H.-F. Bermudez, R. Sanchez-Iborra, J. L. Arciniegas, W. Y. Campo,
and M.- Cano, “Performance validation of NS3-LTE emulation for live
video streaming under QoS parameters,” in 2017 IEEE 13th
International Conference on Wireless and Mobile Computing,
Networking and Communications (WiMob), Rome, Italy, Oct. 2017, pp.
300307. doi: 10.1109/WiMOB.2017.8115836.
[27] H.-F. Bermudez, R. Sanchez-Iborra, J. L. Arciniegas, W. Y. Campo,
and M.-D. Cano, “Statistical validation of an LTE emulation tool using
live video streaming over reliable transport protocols,” Telecommun
Syst, vol. 71, no. 3, pp. 491504, Jul. 2019, doi: 10.1007/s11235-018-
0521-6.
[28] Blender, “Big Buck Bunny » Download,” 2008.
https://peach.blender.org/download/ (accessed Sep. 09, 2020).
[29] ITU-T, “Y.1541 : Objetivos de calidad de funcionamiento de red para
servicios basados en el protocolo Internet,” Dec. 2011.
https://www.itu.int/rec/T-REC-Y.1541-201112-I/es (accessed Nov. 08,
2020).
Scientia et Technica Año XXVI, Vol. 26, No. 04, diciembre de 2021. Universidad Tecnológica de Pereira.
441
H.-F. Bermúdez-Orozco, Author, is a
Titular Professor and Researcher at the
Electronic Engineering Program in the
University of Quindio, Colombia. From the
University of Cauca (Colombia), he
received the degrees in Electronics and
Telecommunication Engineer in 2000,
Masters in Electronics and
Telecommunications in 2010 and PhD in Telematic
Engineering in 2020, where he received a laureate mention for
his doctoral research thesis. He made a doctoral research stay at
the Polytechnic University of Cartagena UPCT in Cartagena
Murcia (Spain) in 2018. He researcher of the
Telecommunications Research group (GITUQ) at Universidad
of Quindío. Areas of interest: wireless communications, radiant
systems and propagation, modeling of traffic of telematic
services, Quality of Service (QoS)/Quality of user Experience
(QoE).
ORCID: https://orcid.org/0000-0002-8101-3764
E. Astaiza Hoyos, Author, Electronics
Engineer from Universidad of Cauca
(1998). Masters in Engineering, area of
Telecommunications, Universidad of
Cauca (2008). PhD in Sciences of
Electronics (2017). Titular Professor at
Universidad of Quindío, program of
Electronic Engineering, Researcher with the
Telecommunications Research group (GITUQ) at Universidad
of Quindío. Areas of interest: wireless comunications, spectrum
sensing.
Orcid: https://orcid.org/0000-0003-2706-0962
W.-Y. Campo, Author, Ph.D in
Telematic Engineering, Magister in
Engineering, Telematic Area and Engineer
in Electronics and Telecommunications
from the University of Cauca Colombia.
He is a researcher at the GITUQ group of
the University of Quindío Colombia,
where he is currently linked as a professor.
His fields of interest are: Software Defined Networking SDN,
5G wireless networks and teletraffic.
Orcid: https://orcid.org/0000-0001-8585-706X
