AbstractProgrammable Logic Controllers (PLC) are
an essential part of automated industrial production
processes since their first implementation, so
understanding the IEC 61131 standard and, above all,
section three defines the programming languages allowed
by PLCs take relevance over time. This work describes
each of the programming languages described in IEC
61131-3. Additionally, it implements an automation system
based on Structured Text with a Human Machine
Interface (HMI). The plant is a temperature process with a
classic control system developed using Matlab tools, such
as System Identification, PID Tuner, and Simulink. For
the HMI, was implemented the Codesys Group industrial
automation process platform. The Simulink PLC Coder
toolbox allows the strengthening of the connection between
the control system and the HMI. This program generates
the Structured Text of a control system developed in
Simulink. For the analysis of results, the control behavior
compared between Simulink and the system produced in
Codesys Group obtained an error of less than 0.34%.
Index Terms Classic Control, IEC 61131-3, Simulink PLC
Coder, Structured Text, Programmable Logic Controllers.
Resumen Los Controladores Lógicos Programables (PLC)
son una parte esencial de los procesos de producción industrial
automatizada desde su primera implementación, por lo que la
comprensión del estándar IEC 61131 y, sobre todo, la sección tres
que define los lenguajes de programación que permiten que los
PLC toman relevancia con el tiempo. Este trabajo describe cada
uno de los lenguajes de programación descritos en el estándar
IEC 61131-3. Además, implementa un sistema de automatización
This manuscript was sent on October 11, 2021 and accepted on November
30, 2021.
A. F. Barrera-Cuestas student of the Universidad Distrital Francisco José
de Caldas. Bogotá, Colombia. (e-mail: afbarrerac@correo.udistrital.edu.co).
M. G. Mantilla-Castañeda student of the Universidad Distrital Francisco
José de Caldas. Bogotá, Colombia. (e-mail:
mgmantillac@correo.udistrital.edu.co).
D. A. Giral-Ramírez professor of the Universidad Distrital Francisco José
de Caldas. Bogotá, Colombia. (e-mail: dagiralr@udistrital.edu.co).
O. D. Montoya-Giraldo professor of the Universidad Distrital Francisco
José de Caldas. Bogotá, Colombia. (e-mail: odmontoyag@udistrital.edu.co).
basado en texto estructurado con una interfaz hombre-
máquina (HMI). La planta es un proceso de temperatura con un
sistema de control clásico desarrollado con herramientas de
Matlab, como System Identification, PID Tuner y Simulink. Para
la HMI, se implementó la plataforma de procesos de
automatización industrial del Grupo Codesys. El toolbox
Simulink PLC Coder permite reforzar la conexión entre el
sistema de control y el HMI. Este programa genera el Texto
Estructurado de un sistema de control desarrollado en Simulink.
Para el análisis de resultados, el comportamiento del control
comparado entre Simulink y el sistema producido en Codesys
obtuvo un error inferior al 0,34%.
Palabras claves Control Clásico, IEC 61131-3, Simulink
PLC Coder, Lenguaje Estructurado, Controladores Lógicos
Programables.
I. INTRODUCTION
OR diversification, technology control systems require the
incorporation of electronic, electrical, information, and
advanced manufacturing technologies in the means of
production for the automation and digitization of processes,
which is a requirement for new models of energy business and
an opportunity for government-academia (research) -industrial
technology synchrony in a sector that in its transition seeks to
integrate: renewable sources, direct current (DC) transport
systems, energy storage, distributed generation, measurement
systems, smart grids and the participation of end-users.
Elements, in their structure, are associated with new energy
generation and efficiency technologies, such as those targeted
by Industry 4.0, which has different technological trends.
Since their creation in the 60s, Programmable Logic
Controllers (PLC) have become indispensable devices when
carrying out an automation process and are relevant elements
in the challenges proposed by the industry. In the same way,
their constant updating, not only at the hardware level but at
the level of software and programming languages, allow these
instruments to keep at the forefront to the point of being seen
as an ideal option to face the fourth industrial revolution,
where, reduction of production times, optimization of the
levels of quality and resources used will allow us to enter into
this revolution; and, in turn, lead the industry to focus on
caring for the environment [1].
Temperature control using the simulink PLC
Coder and the IEC 61131 standard
Control de la temperatura mediante Simulink PLC Coder y el estándar IEC 61131
or
A. F. Barrera-Cuestas ; M. G. Mantilla-Castañeda ; D. A. Giral-Ramírez ;
O. D. Montoya-Giraldo .
DOI: https://doi.org/10.22517/23447214.24947
Artículo de investigación científica y tecnológica
F
Scientia et Technica Año XXVI, Vol. 26, No. 04, diciembre de 2021. Universidad Tecnológica de Pereira.
418
This article analyzes the IEC 61131-3 standard based on
each of the programming languages it describes, in addition to
implementing a controller through the use of industrial tools
such as Simulink PLC Coder and CODESYS. The objective is
to adopt a temperature control to an HMI through Structured
Text. The temperature control is carried out in Simulink,
employing the Toolbox Simulink PLC Coder that generates
the high-level programming structure. Finally, the HMI is
built and programmed in Codesys using the previously
obtained Structured Text.
II. STANDART IEC 61131-3
Section of the IEC 61131 standard created by the
International Electrotechnical Commission (IEC). This
standard defines the five programming languages for
Programmable Logic Controllers (PLC) to obtain order when
carrying out an industrial automation process through these
devices. The IEC standard determines the programming
languages: Ladder Diagram, Function Block Diagram (FBD),
Instruction List (IL), Structured Text (ST), and Sequential
Function Chart (SFC) [2].
Define abbreviations and acronyms the first time they are
used in the text, even after they have already been defined in
the abstract. Abbreviations such as IEEE, SI, ac, and dc do not
have to be defined. Abbreviations that incorporate periods
should not have spaces: write “C.N.R.S.,” not “C. N. R. S.”
Do not use abbreviations in the title unless they are
unavoidable (for example, “IEEE” in the title of this article).
A. Ladder Diagram
Designed primarily for processing Boolean signals using
power rail delimited graphical symbols that together resemble
steps in a ladder logic diagram. The Ladder programming
language allows, through the use of contact logic, to connect
elements in series (AND) or in parallel (OR), which contribute
to the flow or interruption of energy to supply an output called
coil [3].
B. Function Block Diagram (FBD)
Based on the standard, today retired, IEC 60617-12, the
FBD programming language defines a series of graphic
elements. These elements allow the generation of a structure
that from rectangular boxes with inputs, outputs, and flow
statements of control they manage to carry out logical,
arithmetic expressions or calls a function block so that once
interconnected employing signal flow lines they can feed the
outputs of the system [4].
C. Instruction List (IL)
The IL programming language, considered a low-level
programming language, consists of a progression of
instructions made up of modifiers and operations. These
instructions aim that when carried out, they recreate a list of
instructions. Even though its rapid processing makes one of its
main implementations that of control processes, the IEC has
decided not to take it into account for its next update [5].
D. Structured Text (ST)
The ST language is derived from the Pascal programming
language, and it is considered, by the standards, as one of the
high-level languages. The ST Language can control the
command flow by variables, expressions, or declarations of
type selection, iterations, complex mathematical formulas, or
calculations; it is easy for a programmer to apply and
understand [6] [7].
E. Sequential Function Chart (SFC)
The SFC was created to divide a more complex program
into small manageable units. SFC graphically describes the
control flow between systems using stages and transitions to
design sequential and parallel processes. The SFC language
allows the visualization of the dependencies or
interdependencies of the laps according to the process
location. It also releases programming its units in the
programming languages mentioned above [8] [9].
III. CONTROLLER WITH HMI
The proposed methodology was divided into six stages.
The flow charts in Fig. 1, Fig. 2 and Fig. 3 describe the six
stages.
A. Stage 1: Obtaining the transfer function in discrete time
It is necessary to establish the behavior of the system to be

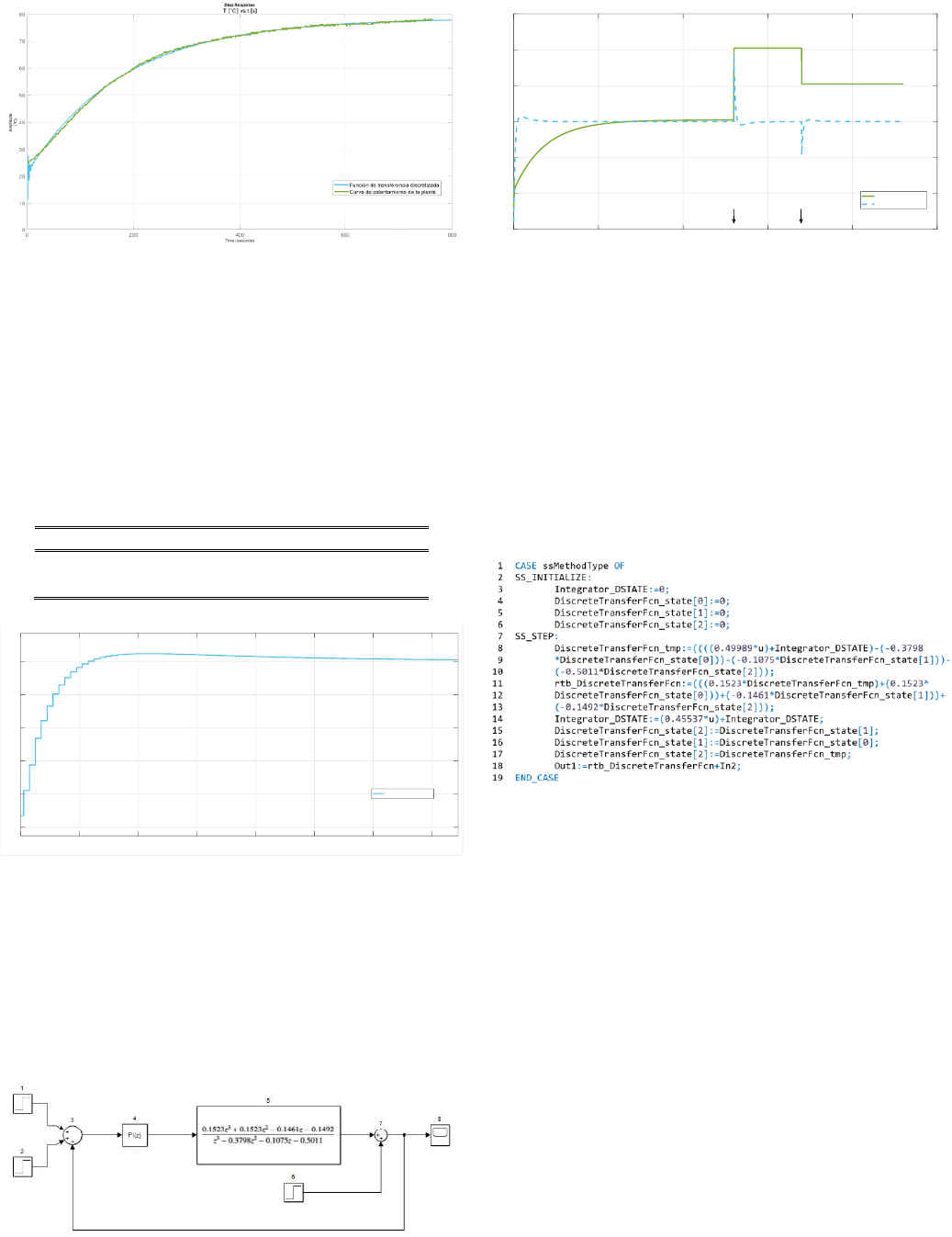

analyzed to obtain the transfer function. Fig. 4 presents the
heating curve of the selected system; this curve was generated
by laboratory tests. The minimum temperature reached was
24.93 °C, and the maximum was 78.2 °C.
With the Matlab System Identification toolbox, the heating
curve of the thermal plant, and the supply voltage, the data is
processed to obtain the transfer function in the continuous-
time domain (1), gathering a 96.03% correspondence.
Employing the Matlab c2d command the transfer function is
obtained in the discrete-time domain (2), using the Tustin
discretization method. Fig. 4 represents the system heating
curve and the discrete-time transfer function curve.
(1)
32
()
32
0.1523 0.1553 0.1461 0.1492
0.3798 0.1075 0.5011
z
z z z
H
z z z
+
=
+ + +
(2)
