Scientia et Technica Año XXVIII, Vol. 28, No. 03, julio-septiembre de 2023. Universidad Tecnológica de Pereira. ISSN 0122-1701 y ISSN-e: 2344-7214 108

Multi-criteria methodology based on data science for

the selection of the optimal forecast model for

residential electricity consumption

Metodología multicriterio basada en ciencia de datos para la selección del modelo óptimo

de pronóstico del consumo de energía eléctrica residencial

C. A. Yajure-Ramírez

DOI: https://doi.org/10.22517/23447214.25335

Scientific and technological research paper

Abstract— There is a wide variety of techniques and models for

forecasting electrical energy consumption, depending on both the

type of user, the forecast horizon, and the resolution of the

available data. Likewise, there are different metrics to evaluate the

performance of these models. So, in this research an integrated

multi-criteria methodology is proposed to select the best forecast

model for residential electricity consumption, using the Analytical

Hierarchical Process (AHP) to establish the weights of relative

importance of the decision criteria, and the Technique for Order

of Preference by Similarity to Ideal Solution (TOPSIS) to make the

selection of the optimal model. The methodology is in turn framed

within a data science process, through which the data is extracted,

processed, and analyzed, prior to the application of the machine

learning algorithms to obtain the forecast models, which will

correspond to decision alternatives. The performance metrics in

the evaluation phase of the models, and the performance metrics

obtained from the forecast phase, are considered as the decision

criteria. From the pairwise comparisons technique, it was obtained

that the mean absolute percentage error (MAPE) of the prognosis

phase was the criterion with the greatest weight of importance,

followed by the coefficient of determination R

and the MAPE of

the evaluation phase. From the TOPSIS method, the Multiple

Linear Regression model was selected as the optimal forecast

model.

Index Terms— AHP, data science, machine learning, pairwise

comparisons, regression, TOPSIS.

Resumen— Existe una gran variedad de técnicas y modelos para

el pronóstico del consumo de energía eléctrica, dependiendo tanto

del tipo de usuario, como del horizonte de pronóstico y de la

resolución de los datos disponibles. Asimismo, existen distintas

métricas para evaluar el desempeño de estos modelos. Entonces,

en esta investigación se propone una metodología integrada

multicriterio para seleccionar el mejor modelo de pronóstico del

consumo de energía eléctrica residencial, utilizando el proceso

jerárquico analítico (AHP) para establecer los pesos de

importancia relativa de los criterios de decisión, y la técnica para

el orden de preferencia por similitud con la solución ideal

(TOPSIS) para hacer la selección del modelo óptimo. La

metodología se enmarca a su vez dentro de un proceso de ciencia

de datos, a través del cual se extraen, procesan y analizan los datos,

This manuscript was submitted on January 11, 2023, accepted on June 21, 2023

and published on September 20, 2023.

C.A. Yajure-Ramírez is a postgraduate professor of the master’s program in

Operations Research at the Basic School of Engineering of the Central

University of Venezuela, Caracas, Venezuela (e-mail: cyajure@gmail.com).

previo a la aplicación de los algoritmos de aprendizaje automático

para obtener los modelos de pronósticos, que se corresponderán

con las alternativas de decisión. Las métricas de desempeño en la

fase de evaluación de los modelos, y las métricas de desempeño

obtenidas de la fase de pronóstico, son consideradas como los

criterios de decisión. De la técnica de comparaciones pareadas se

obtuvo que el error porcentual absoluto medio (MAPE) de la fase

de pronóstico fue el criterio con mayor peso de importancia,

seguido del coeficiente de determinación R

y del MAPE de la fase

de evaluación. A partir del método TOPSIS, se seleccionó el

modelo de Regresión Lineal Múltiple como el modelo óptimo de

pronóstico.

Palabras claves— AHP, aprendizaje automático, ciencia de datos,

comparaciones pareadas, regresión, TOPSIS.

INTRODUCTION

N important element for the operation and planning of

electrical systems is the forecast of the consumption of

electrical energy produced by that system. Within the

electricity consumption forecast, some factors must be

considered, one of which is the type of customer. That is,

whether the consumption data is associated with residential,

commercial, official, industrial, or other customers.

Additionally, the forecast horizon must be defined. For

example, in [1] they classify the forecast of electricity

consumption into three categories: short, medium, and long

term. The first category refers to the prediction with hourly

resolution of the load for a time ranging from one hour to

several days. The medium-term forecast relates to a horizon of

one to several months ahead. Finally, the long-term forecast is

usually associated with periods of one or several years in the

future.

To develop the forecast of electrical energy consumption, there

are a variety of techniques or algorithms that generate different

types of models. This is how in [2] they propose that for the

short-term time series analysis models, artificial neural

networks, support vector machines, among others, could be

used. For the medium term, they propose econometric models,

109

Scientia et Technica Año XXVIII, Vol. 28, No. 03, julio-septiembre de 2023. Universidad Tecnológica de Pereira

neural networks, linear regression, trend analysis, and end-use

models. Therefore, it would be useful to have a methodology

that would allow selecting the best forecast model for electrical

energy consumption for a particular forecast horizon.

Therefore, the objective of this research is to develop a

multi-criteria methodology for the selection of the optimal

medium-term forecast model, based on data science. The

determination coefficient R

, the square root of the mean square

error (RMSE), the mean absolute error (MAE), and the mean

absolute percentage error (MAPE) are used as decision criteria,

obtained from the evaluation of the models, and the last three

metrics derived from the forecast with new data. Likewise, the

technique of paired comparisons of the hierarchical analytical

process (AHP) is used to determine the weights of relative

importance of the criteria and the technique of order of

preference by similarity to ideal solution (TOPSIS) as the

technique of multicriteria decision making. The alternatives to

consider in the selection process are the forecast models that are

obtained by applying machine learning algorithms.

A bibliographic review was made on the research topic, some

of which are mentioned below. For example, in [3], they

propose an ANP-TOPSIS multicriteria methodology to select

the best forecast model, which they test using a case study of a

plastic bag manufacturer and considering forecast models

related to time series analysis. The performance metrics of the

models are used as decision criteria, and the forecast models to

be evaluated are used as decision alternatives. The authors in

[4] use the Electre I method to select the set of explanatory

variables to be used in the forecast models. The forecast models

compared were artificial neural network, arima, autoregressive,

exponential smoothing, radial basis function networks, and

machine learning. Using the RMSE, MAE and MAPE

performance metrics, they conclude that the neural network

models had the best performance of all the models. In [5], the

authors perform short-term forecasting of individual consumers

using four machine learning techniques: support vector

machine, artificial neural network, long short-term memory

network, and fuzzy adaptive resonance theory neural networks.

The metrics used to evaluate the models were R

and MAPE.

They conclude that the vector support regression model had the

best performance of the models considered. In [6] they

examined electric power forecasting methods for the short term.

They considered classical regression methods and machine

learning algorithms. They used forecast accuracy as a

performance metric and conclude that all their models had high

accuracies. In [7] the authors propose a hybrid electric charge

forecast model for the short-medium term composed of

principal component analysis and traditional multiple

regression, whose results compared classical statistical models.

The performance metrics for the comparison of the models

were: RMSE, MAE, and MAPE. They conclude that their

model is superior to all other models. The authors in [8] propose

a framework for feature selection, extraction, and regression to

carry out electric charge prediction. They use extreme gradient

boosting and random forest to determine the importance of each

feature. For the forecast phase they use an improved support

vector machine and an improved artificial neural network. For

the performance evaluation of the models, they make use of:

MAE, MSE, RMSE, and MAPE. The simulation results

illustrate that the proposed improved models have higher

accuracies than traditional models. In [9] they propose a

solution for forecasting the monthly electricity demand using

statistical methods (exponential smoothing, arima, and prophet)

whose results were compared with other models using the

metrics: interquartile range (IQR), median absolute porcentual

error (MdAPE), MAPE, and RMSE. They conclude that the

combined models perform better than the individualized

models. In [10] they review methods for forecasting electricity

consumption. From their review, they conclude that linear

regression continues to be the most widely used model for the

long-term forecast horizon, while neural networks, support

vector machines, and fuzzy logic are the most widely used

techniques for the short term.

The rest of the article is organized as follows. Section 2

presents the methodology used. Then the results are presented

and discussed, to finally present the conclusions derived from

the research, and the bibliographical references used.

II.

MATERIALS AND METHODS

In this section, the methodology to be used is presented, as

well as the data use to illustrate it. Specifically, the

methodology consists of the combination of multi-criteria

decision-making methods with the methodology of data science

projects, incorporating a selection stage of the optimal forecast

model.

Multi-criteria decision making (MCDM) resides in

addressing a decision problem in which there is more than one

decision criteria to consider for the selection of the best

alternative. According to [11], MCDM is divided into multi-

objective decision making (MODM) and multi-attribute

decision making (MADM). The MODM is characterized by

having an explicit goal and a continuous decision space

(infinitely many alternatives and attributes), while the MADM

is characterized by having an implicit goal and a discrete

decision space, with discrete alternatives and attributes.

On the other hand, data science is made up of three distinct

and overlapping areas: the statistical skill of modeling and

summarizing data sets; the computer skills to design and use

algorithms that allow this data to be stored, processed, and

visualized efficiently; and mastery of the technical area of

interest [12]. In general, data science projects consist of a series

of stages that can be applied sequentially or with feedback,

depending on the case study. In this sense, authors in [13]

presents a total of six stages, and in the last one it is incorporated

the multicriteria selection of the optimal model.

The first of the stages is the definition of the objective of the

data science project, and in this case, it is nothing more than

developing the forecast of the consumption of residential

electrical energy. Next, there is the stage of extracting or

obtaining the data set to be analyzed, which could come from

internal or external sources, or a combination of these two.

Subsequently, there is the processing of the data, which could

include, among others, the detection and imputation of missing

data, the detection and imputation of outliers, the detection of

duplicate data, verification of the proper format of the data, the

transformation of data, and data combination. This stage is the

one that usually occupies the most time in projects of this

nature. Then there is the exploratory analysis of the data, in

which univariate and/or multivariate statistical, analytical, and

110

Scientia et Technica Año XXVIII, Vol. 28, No. 03, julio-septiembre de 2023. Universidad Tecnológica de Pereira

graphic tools are applied to the processed data. For this

research, the modeling stage consists of using machine learning

algorithms to generate forecast models of residential electricity

consumption. For each of the models obtained, performance

metrics are calculated in the training stage of the model, and

they are also calculated in the forecast stage, comparing the

predicted values with the actual values. The performance

metrics to consider are: R

, MAE, RMSE, and MAPE. Next, the

model selection stage is incorporated, in which the paired

comparisons technique of the AHP method is used to determine

the weights of relative importance of the decision criteria, and

the TOPSIS method for the multicriteria selection of the

optimal model of forecast.

On the other hand, this section presents the stages of data

collection and processing, while the following section presents

the stages of exploratory data analysis, data modeling, and

optimal model selection.

Data collection

The data used to illustrate the methodology was obtained

from different sources. This is how the electricity consumption

data was extracted from the online platform "Energía Abierta"

of the National Energy Commission of Chile [14], which is the

regulatory entity of the Chilean energy market. These data

correspond to the electricity billed monthly for regulated clients

in Chile during the period 2015-2022.

This data set has 390,821 rows and 10 columns. The columns

are equivalent to the 10 existing variables, which are: the year

in which this billed energy is consumed (“year”), the month in

which the billed energy is consumed (“month”), the commune

where the distribution company makes the withdrawal of this

energy for regulated customers (“comuna”), the type of

customers, whether residential or non-residential

(“tipo_clientes”), the type of tariff corresponding to the types

of customers (“tariff”), the amount of customers that are

supplied with the electric power withdrawn from the supply

point (“clients”), the base electric power in kWh billed to

regulated customers during the reported period (“e1_kwh”), the

additional winter electric power in kWh billed to regulated

customers (“e2_kwh”), the total electric energy in kWh billed

to regulated customers during the reported period (“energy”),

and the geographic region in which the billed customers are

located (region). Data from the monthly electricity service

quality index (“saidi”) were extracted from the same platform.

Each one of the 390,821 rows "corresponds to a batch of

electrical energy withdrawn from the supply point by the

distribution company during the reported period, to supply a

certain number of customers, who have the same type of tariff,

and who are located in the same region and commune of the

country” [15].

The outdoor average temperature data were taken from the

website of the General Directorate of Aeronautics of Chile

(DGAC) [16] and correspond to the monthly historical series

from January 2015 to December 2022 of the average

temperature (“temp_med”) measured in the center of the

Metropolitan Region of Chile. Finally, the data of the Consumer

Protection Index (“IPC”) were obtained from the website of the

INE of Chile [17] and corresponds to the previously mentioned

monthly historical period.

Data processing

The data to be used for the forecast correspond to the

metropolitan region of Chile, so the first step consisted in

filtering the data to obtain records from only that region. This

leaves us with 59,704 records and 9 columns, as the region

column is no longer useful. Another filter is then done to

achieve a data set of residential customers only, which leaves

us with 5,090 records and 8 columns, since the customer type is

no longer useful. From January 2015 to December 2022 there

are 96 months, so the records corresponding to the same month

and year were grouped, to go from 5,090 records to 96 monthly

records.

Next, the monthly data set, made up of residential electricity

consumption and the number of customers billed, is

concatenated with the data on average temperature, the

consumer protection index CPI (“IPC”), the CPI percentage rate

(“rate_IPC”), and the service quality index, to obtain a data set

of 96 monthly records with seven columns corresponding to the

variables just mentioned plus the date. Next, the possible

existence of missing data and duplicate data is verified,

resulting in neither of the two types.

Then, the possible existence of atypical data is checked, of

which two were detected for residential electricity

consumption, during the months of July and August of the year

2020, just when confinements were implemented due to the

pandemic. These outliers were imputed with the average values

of the values of the respective month, during the period 2015-

2019. Finally, the electrical energy consumption data was

adjusted to change its units from kilowatt-hours (kWh) to

megawatt-hours (MWh).

III.

DISCUSSION AND RESULTS

The exploratory analysis seeks to determine patterns in the

data, as well as possible significant relationships between the

variables. In the modeling of the data, different machine

learning algorithms are applied to obtain the forecast models to

be evaluated. In the selection of the best model, multicriteria

decision-making techniques are applied to obtain the optimal

model.

Exploratory data analysis

The tools of statistics are then used to explore the data set.

First, Table I describes the data using univariate statistics. The

average values of the temperature, the CPI, the number of

customers billed, and the electrical energy in MWh, are like

their median. In the same way, it can be observed that the

number of customers billed, and the consumption of electrical

energy are the variables that have less variability.

TABLE I

DESCRIPTIVE STATISTICS OF THE DATA

Statistic

clients

temp_med

IPC

rate_IPC

saidi

energy

Count

Mean

2,412,983.20

15.62

101.51

0.003

0.76

527,196.73

std

145,229.64

4.74

7.44

0.004

0.61

65,604.23

Min

1,797,917.00

8.20

89.56

-0.004

0.28

423,719.89

2,310,053.25

11.53

96.10

0.001

0.45

475,294.21

Median

2,420,15.50

15.55

100.51

0.003

0.57

510,559.67

111

Scientia et Technica Año XXVIII, Vol. 28, No. 03, julio-septiembre de 2023. Universidad Tecnológica de Pereira

2,523,130.00

20.20

105.11

0.005

0.81

571,258.85

Max

2,797,967.00

24.10

122.48

0.019

5.04

711,243.07

Next, a correlation analysis between the variables is made,

using three methods: Pearson, Spearman, and Kendall. The first

of the methods is parametric, while the other two are of the non-

parametric type [18]. Because the results are similar for the

three methods, Fig. 1 presents the correlation matrix, when the

Pearson method was used.

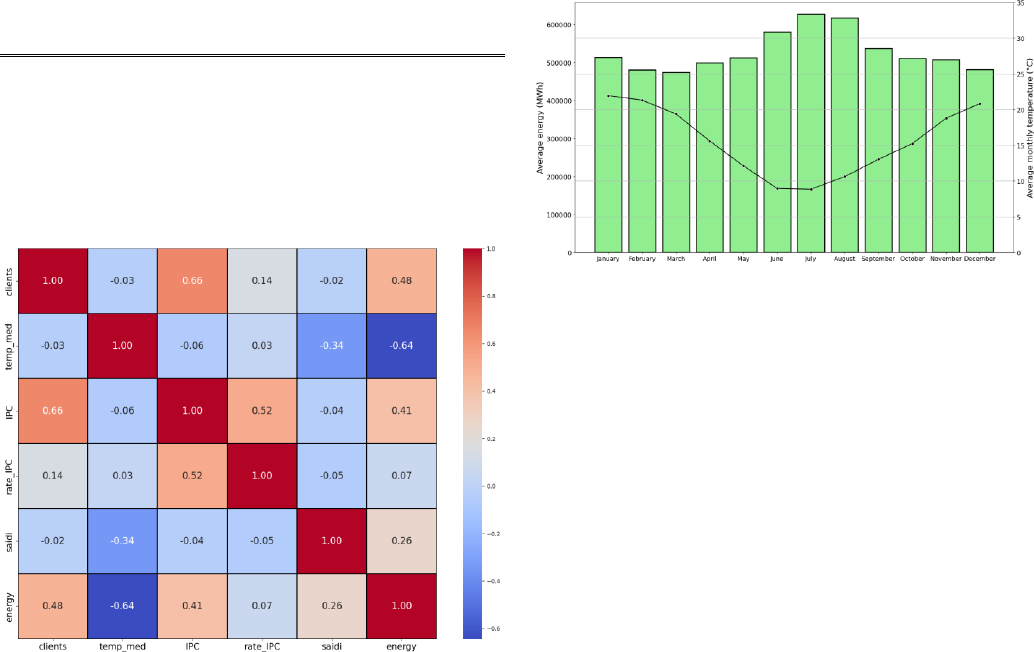

Fig. 1. Correlation matrix.

The correlation coefficient varies between -1 and 1, being

negative when the relationship between the variables is inverse,

and positive when it is direct. Ratner [19] postulates that

“values between 0 and 0.3 (0 and -0.3) indicate a weak positive

(negative) relationship. Values between 0.3 and 0.7 (−0.3 and

−0.7) indicate a moderate positive (negative) relationship.

Values between 0.7 and 1.0 (−0.7 and −1.0) indicate a strong

positive (negative) relationship”. In this sense, from Fig. 1

residential electricity consumption (“energy”) has a direct and

moderate correlation value of 0.48 with the number of users

(clients), inverse and moderate with the ambient temperature (-

0.64), direct and moderate with the CPI index (0.41), direct and

weak with the saidi service quality index (0.26), and almost

zero with the CPI percentage rate.

The inverse relationship between energy consumption and

average temperature is confirmed by looking at Fig. 2, which

shows monthly average energy consumption vs. the average

monthly temperature.

Fig. 2. Residential electricity consumption vs. Average temperature.

It can be noted that during the months of low average

temperature, below 10°C during the months of June, July, and

August, the consumption of electrical energy reaches its

maximum values. Then it reaches its lowest values between the

months of December and March.

Data modeling

At this point, the algorithms are applied: K nearest neighbors

(K-NN), decision tree regression (TDR), support vector

regression (SVR), multiple linear regression (MLR), and

artificial neural network (ANN), to obtain forecast models,

along with their respective performance metrics. In [3], the

authors only consider time series analysis models.

The data set to be considered in the application of each of the

algorithms corresponds to ninety records, equivalent to ninety

months from January 2015 to June 2022. The number of

customers billed, the average temperature in degrees Celsius,

the consumer protection index, and the saidi service quality

index, make up the set of explanatory variables. On the other

hand, the consumption of residential electricity billed in

megawatt-hours (MWh) represents the objective variable of the

models.

Among the performance metrics considered is R

, which is

associated with the quality of fit of the model obtained. It

indicates the percentage or proportion of the total variation of

the objective variable that is explained by the independent

variables of the model [20]. Likewise, the MAE, the RMSE,

and the MAPE are used, which are standard statistical measures

for forecast models [21].

Artificial Neural Network

The first step in the application of ANN algorithm consists

of dividing the data into two parts: 70% of the data is used to

train the model, while the remaining 30% is used for testing and

validation the trained model. The 30% is divided into two equal

parts, in such a way that the test and the validation of the model

have the same amount of data.

The network model with which we work is known as a

"multilayer perceptron" (MLP), which is composed of different

layers: an input layer, an output layer, and a set of hidden layers

located between the input and the output [22]. In this case, three

layers were considered, all the “dense” type, which implies that

the corresponding layer connects all its neurons with all the

neurons of the preceding layer [23]. The input layer has 256

neurons, the hidden layer also has 256 neurons, and the output

layer, which, since the model is regression, only has one

112

Scientia et Technica Año XXVIII, Vol. 28, No. 03, julio-septiembre de 2023. Universidad Tecnológica de Pereira

neuron. Each one of the layers has an activation function, which

is more than a mathematical function that is applied to the heavy

sum of the input signals of the neuron, to obtain the output of

said neuron. There is a variety of activation functions, among

which are: “sigmoid”, “tanh”, “ReLU”, “ELU”, “Leaky ReLU”

[22]. Additionally, loss functions must be defined, to control the

deviation of the forecast when it is compared with the desired

value [24]. In addition, when the deviation is significant, the

output is fed back to the input through the optimizer, to update

the weights of the inputs and therefore the training cycle is

repeated. The iterations through the entire data set of the

network training process are known as the “epoch” [25].

In the study network, a ReLU type activation function was

defined, both for the input layer and the hidden layer, to limit

the values of their respective outputs to only positive values,

while the output layer has a "linear" type activation function in

order not to limit the prognosis. As loss functions we work with

the MAE and the MSE, which are typical in regression

problems. Likewise, the root mean square propagation

optimizer (RMSProp) is used to update the weights. Finally, for

the history of the network a total of 2,000 times is set.

The previously mentioned performance metrics are used to

evaluate the model. While, for the analysis of the residues, the

Shapiro-Wilk test is used, which according to [26] has as null

hypothesis that the data is normally distributed. The test statistic

varies between 0 and 1, and when it is close to 1 it is an

indication that the data is normally distributed.

After evaluating the model, a relatively good quality of fit of

73.8% was obtained, the MAE obtained was 23,551.24 MWh,

which represents around 4.50% of the average of the electric

power consumption of the historical data, and the RMSE

obtained of 27,920.69 MWh represents 5.30% of the average

just mentioned. Likewise, a MAPE of only 4.63% was obtained.

On the other hand, from the analysis of the residuals, it can be

said that they are normally distributed since the Shapiro-Wilk

test statistic is close to unity (0.964) and the p-value is notably

greater than 5% of statistical significance (0.818).

Multiple Linear Regression

For the application of MLR algorithm, the data is initially

divided to assign 70% to the model training process, and the

remaining 30% are used for model testing.

After applying the algorithm, the model obtained was

evaluated, from which a quality of fit of almost 63% was

achieved, lower than that obtained with the previous model, but

still an acceptable value. Regarding the RMSE, it was

40,787.96 MWh, which represents 7.75% of the average

residential energy consumption of the historical data, the MAE

was 33,635.32 MWh, which represents almost 6.40% of the

average just mentioned, and for the MAPE a value of 6.35%

was obtained. These last three results are superior to those

obtained with the ANN model, but they can still be considered

low. Regarding the residuals, a p-value significantly greater

than 5% of statistical significance (0.53) was obtained, and the

test statistic is close to unity (0.967), so it can be said that the

residuals are normally distributed.

K Nearest neighbors

The K-NN algorithm can be used for both classification and

regression, but the basic principle is the same in both ways, i.e.,

consider elements that are like each other (neighbors). It is a

non-parametric technique in the sense that it has no restrictions

on the distribution of the data. In the case of regression, the data

to be forecast is estimated through a statistic, which is usually

the mean value, which is obtained by summarizing the

characteristics of the nearest neighbors [27]. For this algorithm,

the division of 70% of the data was made for the training of the

model, and the remaining 30% for the test of said model.

After using the K-NN regression algorithm, by means of the

optimal value 5 for the number of nearest neighbors, the results

of the evaluation of the model with the test data were reached.

It was obtained that around 67% of the variability of the model

is explained by the independent variables, the RMSE of

37,442.99 MWh represents 7.10% of the average value of the

data on electric power consumption of the data set, the MAE of

31,090.85 is equivalent to 5.90% of the mean value just

mentioned, and the MAPE is only 5.89%. Regarding the

analysis of the residuals, it could be said that they are normally

distributed since the Shapiro-Wilk test statistic is close to unity

(0.978) and the p-value is greater than 5% of statistical

significance (0.806).

Decision Tree Regression

According to those proposed by [28] "Decision trees form

classification and regression models as a tree structure by

asking questions and creating decision rules according to the

structure of the data sets that constitute a problem." The use of

the decision tree in regression problems is a robust alternative

to parametric techniques since it does not require assumptions

about the data set under study.

For the application of this technique, in the first place, the

division of the data set is carried out, assigning 70% for the

model training process, and 30% for its evaluation. After the

application of the algorithm, the forecast model was obtained

whose metrics derived from its evaluation are an acceptable fit

quality of the model of 66.4%, the RMSE of 39,368.92 MWh is

equivalent to around 7.50% of the average value of electrical

energy consumption from the historical data, the MAE of

29,591.82 MWh represents 5.60% of the mean value just

mentioned, and the MAPE obtained was 5.72%.

Support vector regression

Initially, support vector machines were created to deal with

classification problems, but later, adjustments were made so

that they could be used in regression problems based on the

same operating principle. The support vector algorithm uses the

kernel concept to convert the given data into a higher

dimension, to achieve the hyperplanes. The points located on

each side of the hyperplane and closest to it are known as

support vectors. There are four main types of kernels, namely

linear, polynomial, sigmoid, and radial basis function [29]. In

this investigation the radial basis function kernel is used. Its use

is recommended in cases with few records, it also tolerates

problems with dimensions that are not so low, but that do not

exceed the number of records.

As in the previous cases, the data is divided into two parts,

70% for model training and 30% for model testing. After

applying the algorithm, the model was obtained and it was

evaluated using the R

, RMSE, MAE, and MAPE metrics. The

model's quality of fit is only 54.8%, the lowest value of all the

113

Scientia et Technica Año XXVIII, Vol. 28, No. 03, julio-septiembre de 2023. Universidad Tecnológica de Pereira

models considered, although a low R

value by itself does not

indicate the presence of a “bad” model. The RMSE value of

35,119.12 MWh is equivalent to 6.66% of the average value of

the historical data of electricity consumption and the MAE

value of 29,772.01 MWh is equivalent to 5.65%, while the

MAPE was only 5.50%. Regarding the residuals, it can be said

that they are normally distributed since the test statistic is close

to unity (0.983) and the p-value is significantly greater than 5%

(0.919).

Forecast Comparison

As already mentioned, the corresponding model for each of

the algorithms was trained with 70% of the historical data, and

with the other 30%, performance metrics were generated to

assess the forecast quality of the respective model. However,

sometimes it is convenient to re-evaluate the respective model,

but using data outside the original data set. The authors in [3]

do not consider the calculation of the metrics in the forecast

with new data.

Then, once each of the models was trained and tested, they

were used to generate the forecast for residential electricity

consumption for the next six months. Subsequently, this

forecast is used, and the data records from the month of July of

the year 2022 to the month of December of the same year, to

recalculate the RMSE, MAE, and MAPE metrics. The results

are presented in Table II. Being metrics of the type "the less the

better", it can be deduced that the MLR model is the one that

has the best performance in forecasting new data for this

objective variable.

TABLE II

MODEL METRICS AFTER FORECAST

Métrica

ANN

MLR

K-NN

TDR

SVR

RMSE (MWh)

147,805.14

39,228.61

59,711.80

54,836.59

101,100.79

MAE (MWh)

125,879.24

30,522.03

54,093.18

49,033.78

95,359.50

MAPE(%)

16.38

4.50

9.12

7.80

17.30

Multi-criteria selection of the best forecast model

There are different decision problems, depending on the

situation to be solved. In this sense, there are: selection

problems, classification problems, hierarchy problems, and

description problems. In this research we are interested in the

selection problem, which is one that aims to "select the best

individual option or reduce the group of options to a subset of

equivalent or incomparable 'good' options." [30].

To deal with selection problems, one of the various

multicriteria techniques available can be used. For selection

problems, the available techniques are varied, but in this

research the AHP is used to define the weights of relative

importance of the decision criteria, and TOPSIS for the

selection of the best forecast model. As stated by [31] the AHP

technique is easy to use, scalable, and its hierarchical structure

can be adapted to many problems, while the TOPSIS technique

has a simple procedure, is easy to use and program, and the

number of steps remains the same regardless of the number of

criteria.

On the other hand, a multi-attribute decision problem could

be represented through its decision matrix [32]. This is a matrix

(M×N) in which the element a

of the matrix indicates the

performance of the alternative A

when it is evaluated in terms

of the decision criterion C

, (for i = 1, 2, 3,…,M, and j = 1, 2, 3,

..., N). Each of the criteria has a relative importance weight w

which is generally defined by the “decision maker”. Then,

given a set of alternatives and a set of decision criteria

(attributes), one seeks to determine the optimal alternative with

the highest degree of "desirability" with respect to the decision

criteria.

Calculation of the relative importance weights of the

criteria

The AHP technique is based on what is known as “paired

comparisons”, which consists of taking a couple of items and

comparing them with respect to one characteristic, without

worrying about other characteristics or other elements. To make

the comparisons, Saaty proposed a scale of numbers that

indicates how many times an element is more important with

respect to another element, according to the criterion or

property used to compare them. The intensity of importance

goes from "1" to "9", being "1" when the elements have equal

importance and "9" when the element is extremely more

important with respect to the other element [33].

The criteria considered for the decision matrix are the metrics

obtained in the evaluation of the models, namely R

, RMSE

MAE

and MAPE

, plus the metrics obtained from the forecast

of residential electricity consumption during the second half of

2022: RMSE

, MAE

and MAPE

. In [3] they only take the

metrics in the evaluation stage of the respective model as

criteria. To these criteria is incorporated the duration time, in

seconds, of the respective algorithm run, to obtain and evaluate

each one of the models. Table III shows the matrix of paired

comparisons obtained, using the numerical scale of importance

intensities.

TABLE III

MATRIX OF PAIRED COMPARISONS

Criteria

RMSE

MAE

MAPE

RMSE

MAE

MAPE

Time

1.00

2.00

1.00

0.50

3.00

RMSE

0.50

1.00

0.50

1.00

0.50

2.00

MAE

0.50

1.00

0.50

1.00

0.50

2.00

MAPE

1.00

2.00

1.00

0.50

3.00

RMSE

1.00

0.50

2.00

MAE

1.00

0.50

2.00

MAPE

2.00

1.00

3.00

Time

0.33

0.50

0.33

0.50

0.33

1.00

Once the paired comparisons matrix is available, we proceed

to obtain the weights of relative importance of the criteria. To

obtain them, a practical procedure is applied that consists of

raising the matrix of paired comparisons to a sufficiently large

power, adding by rows, and normalizing these values by

dividing the sum of each row by the total sum, stopping the

process when the difference between two consecutive powers

is minimal [34]. Table IV shows the relative importance

weights obtained, the forecast MAPE resulted with the highest

importance weight value, while the duration time resulted with

the lowest weight value. It can also be seen that the sum of the

weights is equal to unity. According to [34], once the weights

of relative importance have been obtained, the consistency of

the decision maker must be evaluated calculating the

114

Scientia et Technica Año XXVIII, Vol. 28, No. 03, julio-septiembre de 2023. Universidad Tecnológica de Pereira

consistency ratio (CR), an index that is given as the quotient

between the index of consistency (CI) and the random

consistency index (ICA). If the CR is less than 10%, it can be

said that the decision makers have been consistent, and the

weights obtained are validated. For the case of eight

alternatives, the value of ICA is equal to 1.41, and the CR was

1.28%, so the relative importance weights are valid.

TABLE IV

WEIGHTS

Criteria

Weight

0.147

RMSE

0.098

MAE

0.098

MAPE

0.147

RMSE

0.116

MAE

0.116

MAPE

0.225

Time

0.054

Model selection using TOPSIS

The TOPSIS technique is based on selecting the best

alternative by measuring the shortest geometric distance to the

ideal positive solution, and the longest geometric distance to the

ideal negative solution [35]. It consists of a series of steps, the

first of which, common to all multicriteria decision-making

techniques, consists of obtaining the decision matrix, which is

presented in Table V. Subsequently, the normalized decision

matrix is obtained, and then the weighted normalized decision

matrix, the positive ideal solution and the negative ideal

From the matrix of Table VI, the positive ideal solution A*

is obtained by taking the maximum value of R

, and the

minimum value of the rest of the criteria. In the same way, the

negative ideal solution A- is obtained by taking the minimum

value of R

, and the maximum value of the rest of the criteria.

Results are shown in (3) and (4).

𝐴

∗

{

0.074,0.034,0.035,0.054,0.023,0.020,0.037,0.000

}

(3)

𝐴

−

{

0.055,0.049,0.050,0.074,0.085,0.083,0.144,0.054

}

(4)

The next step is to calculate the distance of each alternative

with the positive ideal solution Di*, and with the negative ideal

solution Di-, and from these values obtain the relative closeness

of each alternative with the ideal solution Ci*, by using (5). This

last parameter varies between 0 and 1, and the optimal

alternative is the one with the highest value. The results are

presented in Table VII, from which the model obtained with the

Multiple Linear Regression algorithm is the optimal alternative

for forecasting the monthly consumption of residential

electricity. Note that the ANN model, which had the best

performance during the model training phase, is ultimately

ranked last, according to this technique and decision criteria.

solution, the distance of each alternative from those solutions,

𝐶

∗

−

�

(5)

𝑖

𝐷

−

+𝐷

∗

and finally the relative closeness of each alternative to the ideal

solution [36].

TABLE V

DECISION MATRIX

Model

RMSE

MAE

MAPE

RMSE

MAE

MAPE

Time

ANN

0.74

27,921

23,551

4.63

147,805

125,879

16.38

127

MLR

0.63

40,787

33,635

6.35

39,229

30,522

4.50

0.75

K-NN

0.67

37,442

31,091

5.89

59,712

54,093

9.12

4.53

TDR

0.66

39,368

29,592

5.72

54,837

49,034

7.80

3.05

SVR

0.55

35,119

29,772

5.50

101,101

95,360

17.30

3.51

The normalized decision matrix is obtained by applying (1)

to obtain each normalized element r

from each element a

Then the weighted normalized decision matrix is obtained by

using (2) and thus getting each weighted element v

from each

. The weighted normalized decision matrix is presented in

Table VI.

� �

TABLE VII

RELATIVE CLOSENESS

Model

ANN

0.143

0.036

0.200

MLR

0.031

0.149

0.826

K-NN

0.049

0.111

0.696

TDR

0.038

0.121

0.760

SVR

0.123

0.064

0.342

IV.

CONCLUSIONS

It was presented and illustrated a multicriteria methodology

to select the best regression model to forecast residential

electrical consumption in the medium term. The TOPSIS

multicriteria decision-making technique was applied to select

the best residential electricity consumption forecast model, with

� =

�

��

(1)

the Multiple Linear Regression model selected according to this

�

�=

�

technique, and with the decision criteria used.

By applying the technique of paired comparisons of the AHP,

𝑣

𝑖𝑗

= 𝑤

𝑗

∙ 𝑟

𝑖𝑗

(2)

TABLE VI

WEIGHTED NORMALIZED DECISION MATRIX

it was possible to obtain the weights of relative importance of

the decision criteria, resulting in the MAPE of the forecast

obtaining the highest weight of relative importance with 0.225.

√

∑

�

Model

RMSE

MAE

MAPE

RMSE

MAE

MAPE

Time

ANN

0.074

0.034

0.035

0.054

0.085

0.083

0.136

0.054

MLR

0.063

0.049

0.050

0.074

0.023

0.020

0.037

0.000

K-NN

0.068

0.045

0.046

0.068

0.035

0.076

0.002

TDR

0.067

0.047

0.044

0.066

0.032

0.065

0.001

SVR

0.055

0.042

0.044

0.064

0.058

0.063

0.144

0.001

115

Scientia et Technica Año XXVIII, Vol. 28, No. 03, julio-septiembre de 2023. Universidad Tecnológica de Pereira

The duration of the run to obtain the models resulted in the least

weight of relative importance.

Machine learning algorithms are applied to obtain forecast

models for residential electricity consumption, using the

number of users, the average temperature, the CPI index, and

the saidi service quality index as explanatory variables.

According to the performance metrics for the evaluation of the

models, R

, RMSE, MAE and MAPE, the ANN model had the

best performance, followed by the K-NN model.

The models obtained were used to forecast energy

consumption for the second half of 2022. The models with the

previously mentioned error metrics were evaluated again,

resulting in the MLR model having the best performance in the

forecast phase with new data, followed by the TDR model.

It is recommended to develop a research to select the best

features for the forecast of electrical residential consumption

through a multicriteria methodology.

REFERENCES

[1]

L. L. Grigsby, Power Systems, Boca Raton, FL: CRC Press, 2007.

[2]

V. Gupta y S. Pal, “An Overview of Different Types of Load

Forecasting Methods and the Factors Affecting the Load Forecasting”,

International Journal for Research in Applied Science & Engineering

Technology, pp. 729-733, 2017.DOI:

http://doi.org/10.22214/ijraset.2017.4132.

[3]

Y. Badulescu, A.-P. Hameri y N. Cheikhrouhou, “Evaluating demand

forecasting models using multi-criteria decision-making approach”,

Journal of Advances in Management Research, pp. 2021. DOI:

https://doi.org/10.1108/JAMR-05-2020-0080

[4]

C. Deina, J. L. Ferreira dos Santos, L. H. Biuk, M. Lizot, A. Converti, H.

Valadares Siqueira y F. Trojan, “Forecasting Electricity Demand by

Neural Networks and Definition of Inputs by Multi-Criteria Analysis”,

Energies, p. 2023. DOI: https://doi.org/10.3390/en16041712.

[5]

J. V. Jales Melo, G. R. Soares Lira, E. G. Costa, A. F. Leite Neto y I. B.

Oliveira, “Short-Term Load Forecasting on Individual Consumers”,

Energies, p., 2022. DOI: https://doi.org/10.3390/en15165856.

[6]

S. Filipova-Petrakieva y V. Dochev, “Short-Term Forecasting of Hourly

Electricity Power Demand”, Engineering, Technology & Applied Science

Research - Reggresion and Cluster Methods for Short-Term Prognosis,

vol. 12, nº 2, pp. 8374-8381, 2022. DOI:

https://doi.org/10.48084/etasr.4787

[7]

G. P. Papaioannou, C. Dikaiakos, A. Dramountanis y P. G. Papaioannou,

“Analysis and Modeling for Short- to Medium-Term Load Forecasting

Using a Hybrid Manifold Learning Principal Component Model and

Comparison with Classical Statistical Models (SARIMAX, Exponential

Smoothing) and Artificial Intelligence Models (ANN, SVM): Th”, MDPI

energies, vol. 9, nº 8, 2016. DOI: https://doi.org/10.3390/es9080635

[8]

S. R. Khan, I. A. Hayder, S. u. Rehman Khan, M. A. Habib, M. Ahmad,

S. M. Mohsin, F. A. Khan y K. Mustafa, “Enhanced Machine-Learning

Techniques for Medium-Term and Short-Term Electric-Load Forecasting

in Smart Grids”, Energies, p, 2022. DOI:

https://doi.org/10.3390/en16010276.

[9]

P. Pełka, “Analysis and Forecasting of Monthly Electricity Demand Time

Series Using Pattern-Based Statistical Methods”, Energies, p, 2023. DOI:

https://doi.org/10.3390/en16020827.

[10]

M. A. Hammad, B. Jereb, B. Rosi y D. Dragan, “Methods and Models for

Electric Load Forecasting: A Comprehensive Review”, Logistics, Supply

Chain, Sustainability and Global Challenges, vol. 11, nº 1, pp. 51-76,

2020. DOI: https://doi.org/10.2478/jlst-2020-0004.

[11]

F. Eltarabishi, O. H. Omar, I. Alsyouf y M. Bettayeb, “Multi-Criteria

Decision Making Methods And Their Applications– A Literature

Review”, de Proceedings of the International Conference on Industrial

Engineering and Operations Management, Dubai, UAE, 2020.

[12]

J. VanderPlas, Python Data Science Handbook - Essential Tools for

Working with Data, Sebastopol, CA: O’Reilly Media, Inc., 2017.

[13]

D. Cielen, A. D. B. Meysman y M. Ali, Introducing Data Science, Shelter

Island, NY: Manning Publications Co., 2016.

[14]

Comisión Nacional de Energía de Chile, “Energía Abierta”, 01 Abril

2023. [En línea]. Available: http://energiaabierta.cl/categorias-

estadistica/electricidad/?sf_paged=2. [Último acceso: 16 July 2022].

[15]

C. Yajure Ramírez, “Uso de algoritmos de aprendizaje automático para

analizar datos de energía eléctrica facturada. Caso: Chile 2015 – 2021”,

Revista I+D Tecnológico, pp. 17-31, 2022. DOI:

https://doi.org/10.33412/idt.v18.2.3678.

[16]

Dirección General de Aeronáutica Civil de Chile, “DGAC CHILE”, 01

04 2023. [En línea]. Available:

https://climatologia.meteochile.gob.cl/application/informacion/fichaDeE

stacion/330020. [Último acceso: 01 12 2022].

[17]

Instituto Nacional de Estadísticas de Chile, “INE”, 01 04 2023. [En línea].

Available: https://www.ine.gob.cl/estadisticas/economia/indices-de-

precio-e-inflacion/indice-de-precios-al-consumidor. [Último acceso: 01

12 2022].

[18]

A. Navlani, A. Fandango y I. Idris, Python Data Analysis, Birmingham,

UK: Packt Publishing Ltd., 2021.

[19]

B. Ratner, Statistical and Machine-Learning Data Mining - Techniques

for Better Predictive Modeling and Analysis of Big Data, Boca Raton, FL:

CRC Press Taylor & Francis Group, 2017.

[20]

D. N. Gujarati y D. C. Porter, Econometría, México, D. F.: McGraw-

Hill/Interamericana Editores, S.A. DE C.V., 2010.

[21]

S. Makridakis, S. Wheelwright y R. Hyndman, Manual of Forecasting:

Methods and Applications, 1997.

[22]

A. Kapoor, A. Gulli y S. Pal, Deep Learning with TensorFlow and Keras,

Birmingham: Packt Publishing Ltd., 2022.

[23]

J. Moolayil, Learn Keras for Deep Neural Networks - A Fast-Track

Approach to Modern Deep Learning with Python, Vancouver, BC,

Canada: Apress, 2019. DOI: https://doi.org/10.1007/978-1-4842-4240 -7

[24]

F. Chollet, Deep Learning with Python, Shelter Island, NY: Manning

Publications Co., 2018.

[25]

J. Brownlee, Deep Learning With Python - Develop Deep Learning

Models On Theano And TensorFlow Using Keras, Melbourne, Australia:

Machine Learning Mastery, 2016.

[26]

J. Arnastauskaite, T. Ruzgas y M. Braženas, “An Exhaustive Power

Comparison of Normality Tests”, Mathematics, p. 2021. DOI:

https://doi.org/10.3390/math9070788.

[27]

M. E. Fenner, Machine Learning with Python for Everyone, Boston:

Pearson Education, Inc., 2020.

[28]

B. K. Gacar y İ. D. Kocakoç, “Regression Analyses or Decision Trees?”,

Manisa Celal Bayar University Journal of Social Sciences, pp. 251-260.

DOI: https://doi.org/10.18026/cbayarsos.796172

[29]

R. Muthukrishnan y M. Jamila. S, “Predictive Modeling Using Support

Vector Regression”, International Journal of Scientific & Technology

Research, pp. 4863-4865, 2020.

[30]

A. Ishizaka y P. Nemery, Multi-Criteria Decision Analysis - Methods and

Software, West Sussex, United Kingdom: John Wiley & Sons, Ltd, 2013.

DOI: https://doi.org/10.1002/9781118644898

[31]

M. Velasquez y P. T. Hester, “An Analysis of Multi-Criteria Decision

Making Methods”, International Journal of Operations Research, pp. 56-

66, 2013.

http://www.orstw.org.tw/ijor/vol10no2/ijor_vol10_no2_p56_p66.pdf.

[32]

E. Triantaphyllou, B. Shu, S. Nieto Sanchez y T. Ray, “Multi-Criteria

Decision Making: An Operations Research Approach”, Encyclopedia of

Electrical and Electronics Engineering, pp. 175-186., 1998.

[33]

T. L. Saaty, “Decision making with the analytic hierarchy process”,

International Journal of Services Sciences, pp. 83-98, 2008. DOI:

https://dx.doi.org/10.1504/IJSSCI.2008.017590..

[34]

J. M. Moreno Jiménez, “El proceso analítico jerárquico (AHP).

Fundamentos, metodología, y aplicaciones.”, Revista Electrónica de

Comunicaciones y Trabajos de ASEPUMA, pp. 28-77, 2002.

[35]

B. Sahoo, R. N. Behera y P. K. Pattnaik, “A Comparative Analysis of

Multi-Criteria Decision Making Techniques for Ranking of Attributes for

e-Governance in India”, International Journal of Advanced Computer

Science and Applications, pp. 65-70, 2022. DOI:

https://dx.doi.org/10.14569/IJACSA.2022.0130311.

[36]

J. Papathanasiou y N. Ploskas, Multiple Criteria Decision Aid - Methods,

Examples and Python Implementations, Cham, Switzerland: Springer

Nature Switzerland AG, 2018. DOI: https://doi.org/10.1007/978-3-319-

91648-4

116

Scientia et Technica Año XXVIII, Vol. 28, No. 03, julio-septiembre de 2023. Universidad Tecnológica de Pereira

César Aristóteles Yajure Ramírez, is

an Electrical Engineer graduated from

the University of Carabobo, Venezuela,

in 1998. Subsequently, he received his

Master's degree in Operations Research

in 2006 at the Central University of

Venezuela, becoming a postgraduate

professor

starting

2008.

has

experience as an engineer, and as a teacher, highlighting his

time at the IUT Dr. Federico Rivero Palacio de Caracas, as a

professor in the Department of Electricity during the period

2003-2013, as well as at the School of Electrical Engineering

and Industrial Automation of the institute DUOC UC of

Santiago de Chile, between 2019 and 2023. Between 2012 and

2017 he worked at the Ministry of Electric Power of Venezuela,

first in the electric development area, and then as coordinator of

the electric demand estimation area and final use of energy. He

has publications in the areas of: Multi-criteria decision making,

electricity demand forecasting, performance evaluation of

photovoltaic solar plants, data science, among others.

ORCID: https://orcid.org/0000-0002-3813-7606.
